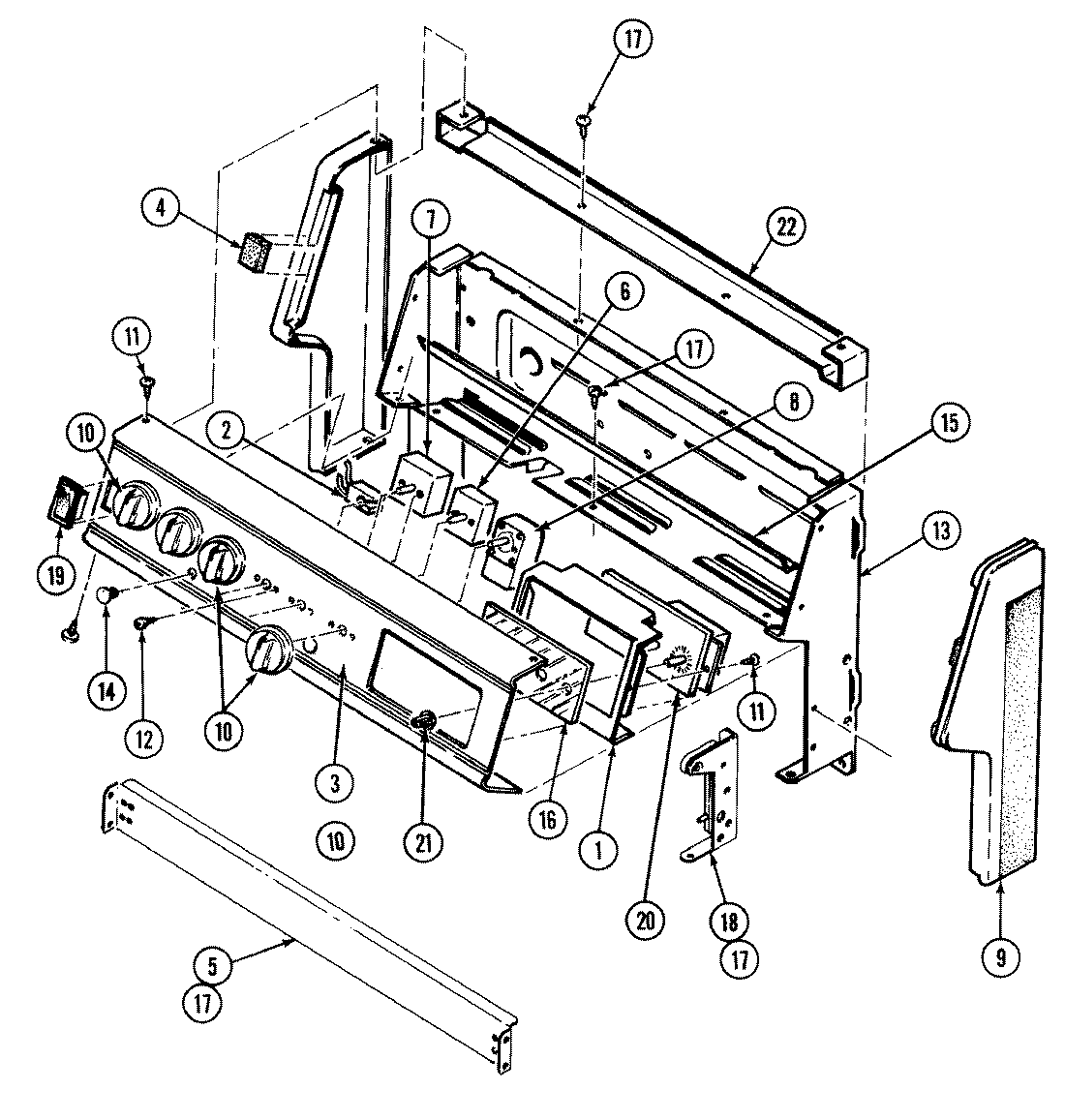

3542XRA 02 – CONTROL PANEL

Products

Position	Product
1	MAY 3801F317-45
1	WPY706189 Whirlpool Stove Screw
2	W10852510 Whirlpool Indicator Light
2	MAY 7407P081-60
3	MAY 7703P298-60
4	MAY 8010P085-60
5	MAY 3802F088-51
6	MAY 7403P254-60
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P081-60
9	MAY 7726P050-60
9	MAY 7726P046-60
9	MAY 7103P129-60
10	MAY 7737P028-60
11	MAY 7118P019-60
12	SCREW
13	MAY 4001F091-51
14	SCREW (8BX3/8-NI)
14	W11690159 Whirlpool Handle
15	MAY 3604F201-80
16	MAY 7201P056-60
16	MAY 7902P109-60
17	MAY 7118P015-60
18	MAY 3418A087-34
18	MAY 3418A088-34
19	7403P067-60 Whirlpool Light Switch
20	MAY 7601P170-60
21	MAY 7711P007-60
22	MAY 4001F064-51
22	MAY 5125A314-60
23	MAY 16000329
23	MAY 8113P021-60
