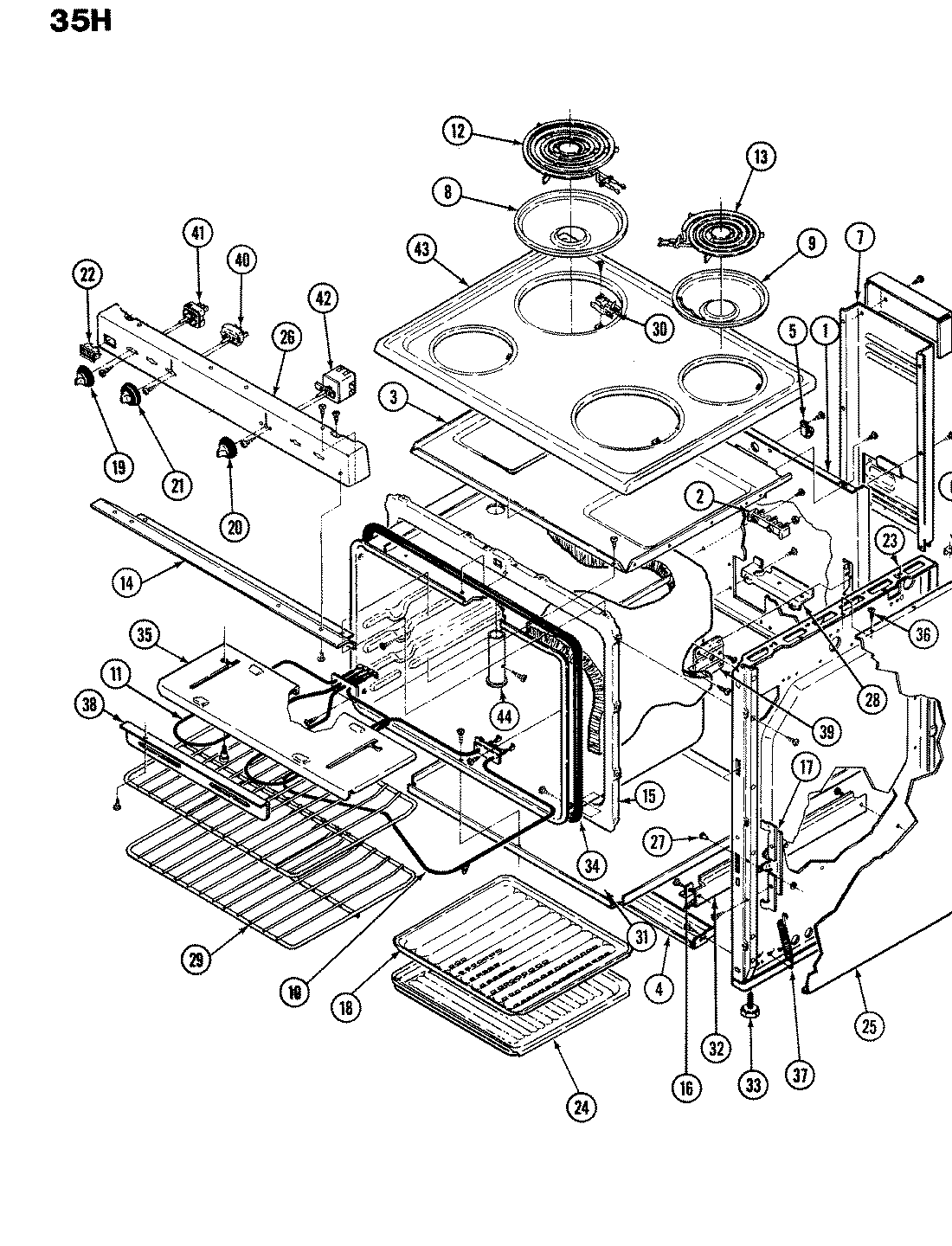

35HA-10-NJ 02 – TOP ASSY./BODY

Products

Position	Product
1	MAY 4002F108-80
2	MAY 7401P002-60
3	MAY 4011F128-23
4	MAY 3801F218-51
4	MAY 7101P289-60
4	MAY 3801F047-34
4	MAY 3801F198-51
4	MAY 3802F076-51
4	MAY 3802F029-80
4	MAY 7101P061-60
4	MAY 3818F022-51
4	MAY 3818F021-51
4	MAY 3801F049-34
5	WP7112P004-60 Whirlpool Thermal Clip
5	MAY 7112P019-60
5	MAY 7111P002-60
6	MAY 7112P073-60
7	MAY 4005F302-51
7	MAY 4005F082-80
7	MAY 4005F005-45
8	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
9	DRIP BOWL 8" W/HOLE CHROME
10	MAY 7406P010-60
10	MAY 7406P067-60
11	MAY 7406P032-60
11	MAY 7406P003-60
11	MAY 7406P068-60
12	MAY 7406P040-60
13	MAY 7406P038-60
14	MAY 4012F021-80
15	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
16	MAY 8016P005-60
17	MAY 4001F051-51
17	MAY 8016P008-60
17	MAY 3418A029-34
17	MAY 3418A030-34
18	MAY Y3413F01619
18	MAY 3413F002-23
19	MAY 7711P314-60
21	MAY 7711P313-60
22	MAY 7407P015-60
23	MAY 4009W077-80
23	MAY 4009W071-80
24	MAY 3401F004-23
24	MAY Y3401F02019
25	MAY 2618F073-74
25	MAY 2618F052-74
26	MAY 2614F007-84
28	MAY 7718P003-60
28	MAY 3605F156-51
29	MAY 7801P030-60
30	PLATE, CONDUIT REINFORCEMENT
30	MAY 7401P014-60
31	MAY 3804F093-80
31	MAY 3804F102-80
32	MAY 3406F027-51
32	MAY 3406F025-51
33	MAY Y7101P25460
34	MAY 7212P002-60
35	MAY 3604F160-34
35	MAY 3604F092-45
36	MAY 8003P011-60
36	MAY 8010P048-60
37	MAY 3420A033-34
37	MAY 7803P059-60
38	MAY 3807F176-15
39	MAY 3807F205-45
40	MAY 7403P031-60
41	MAY 7403P168-60
41	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
41	MAY 7403P263-60
42	MAY 7404P029-60
43	MAY 2002W031-84
44	MAY 8026P001-60
44	MAY 7402P028-60
45	MAY 2601W321-84
46	SPACER, HINGE (MAIN TOP)
47	SCREW
