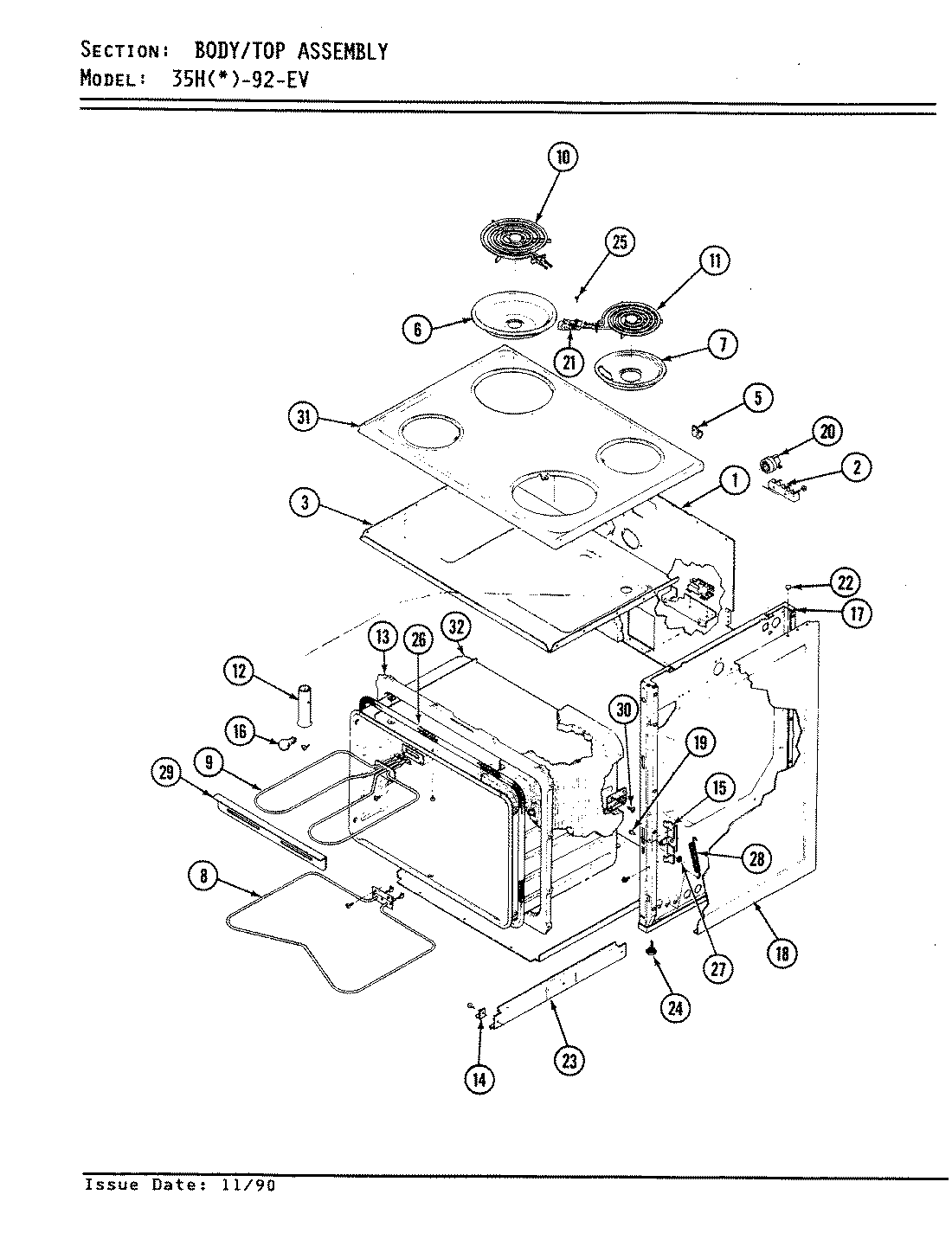

| 1 | MAY 4002F149-80 |
| 2 | WP7103P027-60 Whirlpool Nut |
| 2 | MAY 7401P002-60 |
| 3 | MAY 4012F022-80 |
| 3 | MAY 4011F128-23 |
| 4 | MAY 3801F198-51 |
| 4 | MAY 3802F008-80 |
| 4 | MAY 3802F010-80 |
| 4 | MAY 3802F076-51 |
| 4 | MAY 7101P289-60 |
| 4 | MAY 3801F218-51 |
| 4 | MAY 8003P011-60 |
| 4 | MAY 3802F029-80 |
| 4 | MAY 4006W056-45 |
| 5 | MAY 7111P002-60 |
| 6 | DRIP BOWL 8" W/HOLE CHROME |
| 7 | WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole |
| 8 | MAY 7406P010-60 |
| 8 | MAY 7406P067-60 |
| 9 | MAY 7406P076-60 |
| 9 | MAY 7406P003-60 |
| 10 | MAY 7406P040-60 |
| 11 | MAY 7406P038-60 |
| 12 | MAY 8026P003-60 |
| 14 | SPACER, HINGE (MAIN TOP) |
| 14 | MAY 8016P005-60 |
| 14 | SCREW |
| 15 | MAY 4001F016-19 |
| 15 | MAY 3420A033-34 |
| 16 | MAY 7407P026-60 |
| 17 | MAY Y3413F01619 |
| 17 | MAY 4009W053-80 |
| 17 | MAY 3413F002-23 |
| 17 | MAY Y3401F02019 |
| 17 | MAY 3401F004-23 |
| 18 | MAY 2618F073-71 |
| 19 | MAY 7801P030-60 |
| 20 | MAY 7408P002-60 |
| 21 | MAY 7112P026-60 |
| 21 | MAY 7401P014-60 |
| 22 | MAY 7107P017-60 |
| 23 | MAY 3406F027-51 |
| 24 | MAY 7118P004-60 |
| 24 | MAY 7101P061-60 |
| 24 | MAY Y7101P25460 |
| 24 | MAY 7118P010-60 |
| 25 | SCREW, GROUND (GRN) |
| 26 | MAY 3604F017-45 |
| 26 | MAY 7212P002-60 |
| 27 | MAY 7112P019-60 |
| 28 | WP7803P058-60 Whirlpool Spring |
| 29 | MAY 3807F176-15 |
| 30 | MAY 3807F205-45 |
| 31 | MAY 2002W028-81 |
| 32 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
