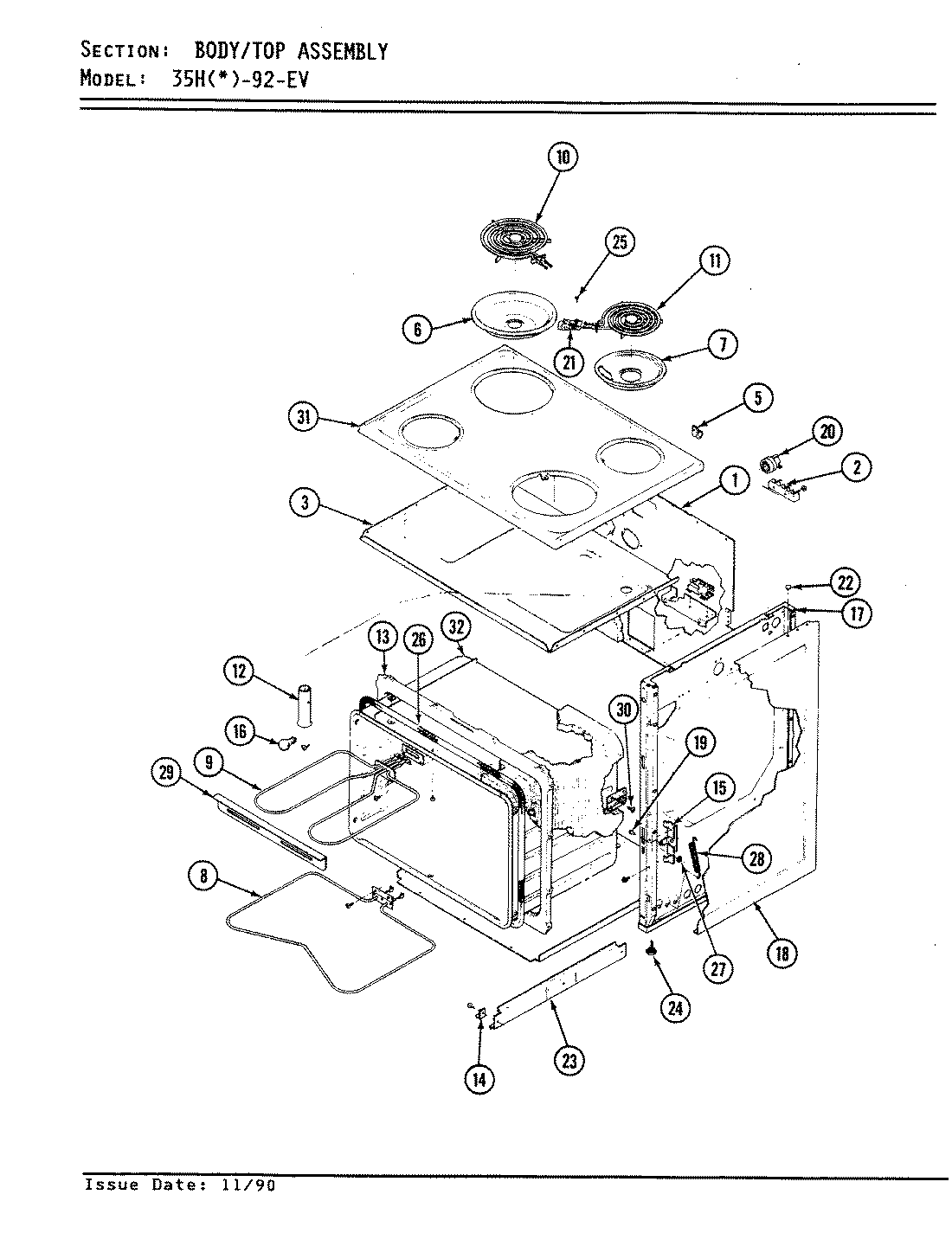

35HN-92W-EV 01 – BODY

Products

Position	Product
1	MAY 4002F149-80
2	WP7103P027-60 Whirlpool Nut
2	MAY 7401P002-60
3	MAY 4012F022-80
3	MAY 4011F128-23
4	MAY 3801F198-51
4	MAY 3802F008-80
4	MAY 3802F010-80
4	MAY 3802F076-51
4	MAY 7101P289-60
4	MAY 3801F218-51
4	MAY 8003P011-60
4	MAY 3802F029-80
4	MAY 4006W056-45
5	MAY 7111P002-60
6	DRIP BOWL 8" W/HOLE CHROME
7	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
8	MAY 7406P010-60
8	MAY 7406P067-60
9	MAY 7406P076-60
9	MAY 7406P003-60
10	MAY 7406P040-60
11	MAY 7406P038-60
12	MAY 8026P003-60
14	SPACER, HINGE (MAIN TOP)
14	MAY 8016P005-60
14	SCREW
15	MAY 4001F016-19
15	MAY 3420A033-34
16	MAY 7407P026-60
17	MAY Y3413F01619
17	MAY 4009W053-80
17	MAY 3413F002-23
17	MAY Y3401F02019
17	MAY 3401F004-23
18	MAY 2618F073-71
19	MAY 7801P030-60
20	MAY 7408P002-60
21	MAY 7112P026-60
21	MAY 7401P014-60
22	MAY 7107P017-60
23	MAY 3406F027-51
24	MAY 7118P004-60
24	MAY 7101P061-60
24	MAY Y7101P25460
24	MAY 7118P010-60
25	SCREW, GROUND (GRN)
26	MAY 3604F017-45
26	MAY 7212P002-60
27	MAY 7112P019-60
28	WP7803P058-60 Whirlpool Spring
29	MAY 3807F176-15
30	MAY 3807F205-45
31	MAY 2002W028-81
32	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
