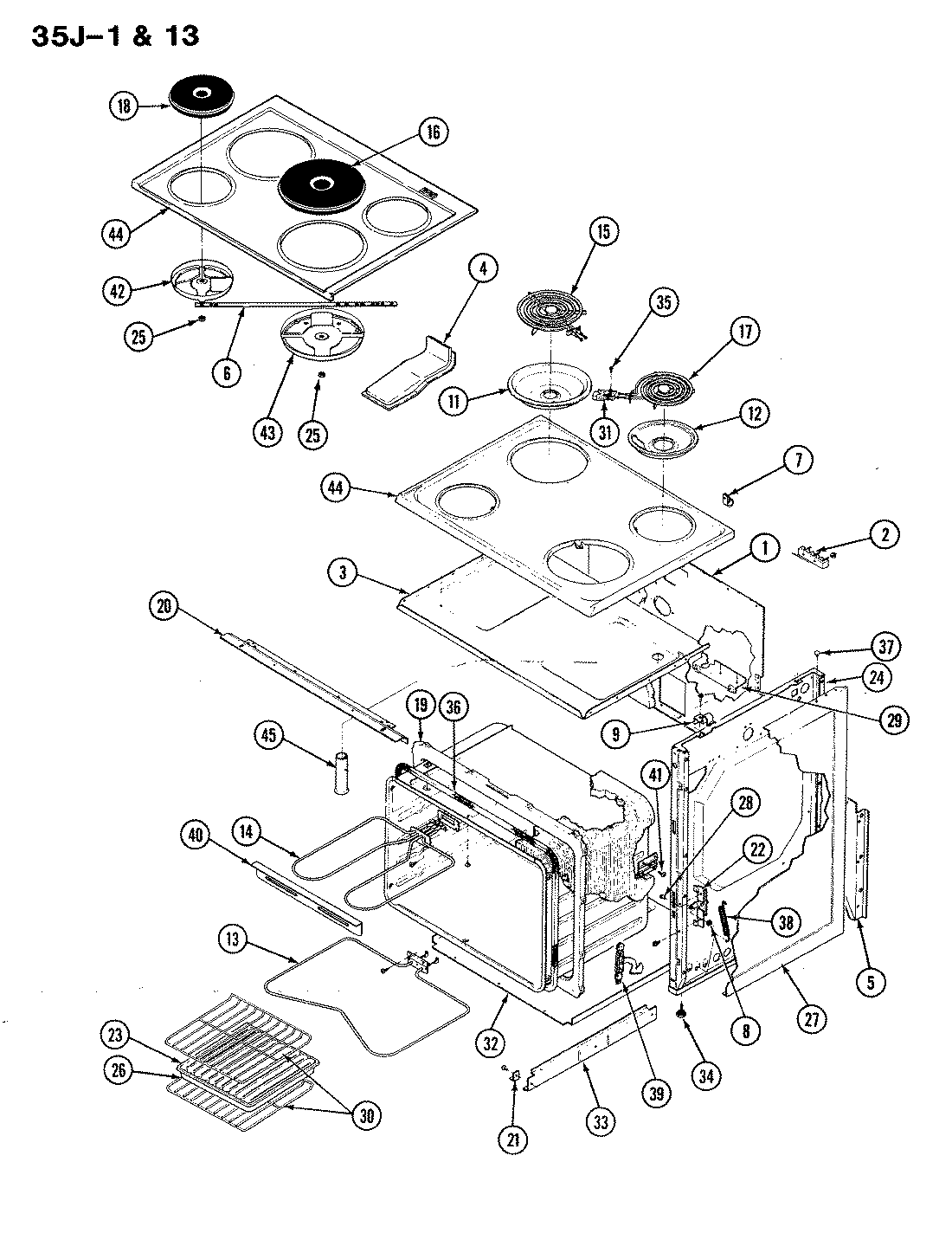

35JA-1XS-ON 02 – BODY

Products

Position	Product
1	MAY 4002F108-80
2	MAY 7401P002-60
3	MAY 4011F128-23
5	MAY 3802F010-80
5	MAY 3802F008-80
5	MAY 3802F029-80
5	MAY 3801F198-51
5	MAY 3802F077-51
7	MAY 7111P002-60
8	WP7112P004-60 Whirlpool Thermal Clip
8	MAY 7112P019-60
9	MAY 4005F016-80
9	MAY 7112P030-60
9	MAY 4005F288-51
10	MAY 4005F005-45
11	MAY 7725P001-60
11	DRIP BOWL 8" W/HOLE CHROME
12	MAY 7725P002-60
12	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
13	MAY 7406P010-60
13	MAY 7406P067-60
14	MAY 7406P076-60
14	MAY 7406P003-60
15	MAY 7406P014-60
15	MAY 7406P040-60
17	MAY 7406P038-60
17	MAY 7406P017-60
19	WP74003976 Whirlpool Screw
20	MAY 4012F007-80
20	WP98008545 Whirlpool Screw
21	MAY 8016P005-60
22	MAY 7101P104-60
22	MAY 3418A030-34
22	MAY 3418A029-34
22	MAY 4001F051-51
23	MAY Y3413F01619
23	MAY 3413F002-23
24	MAY 4009W029-80
24	MAY 4009W053-80
26	MAY 3401F004-23
26	MAY Y3401F02019
27	MAY 2618F073-74
27	MAY 2618F052-74
29	MAY 7101P057-60
29	MAY 3605F156-51
29	PLATE, CONDUIT REINFORCEMENT
30	MAY 7801P030-60
31	MAY 1430306K
32	MAY 3804F102-80
32	MAY 7107P017-60
32	MAY 3804F093-80
33	MAY 3406F027-51
33	MAY 3406F025-51
34	MAY Y7101P25460
35	MAY 7101P042-60
36	MAY 7212P002-60
37	MAY 8003P010-60
37	MAY 8010P048-60
38	MAY 7803P055-60
39	MAY 3420A033-34
40	MAY 3807F176-15
41	MAY 3807F205-45
43	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
44	MAY 2002W028-84
45	MAY 8026P003-60
