35JN-2CLX-EC 02 – CONTROL PANEL – Aparts

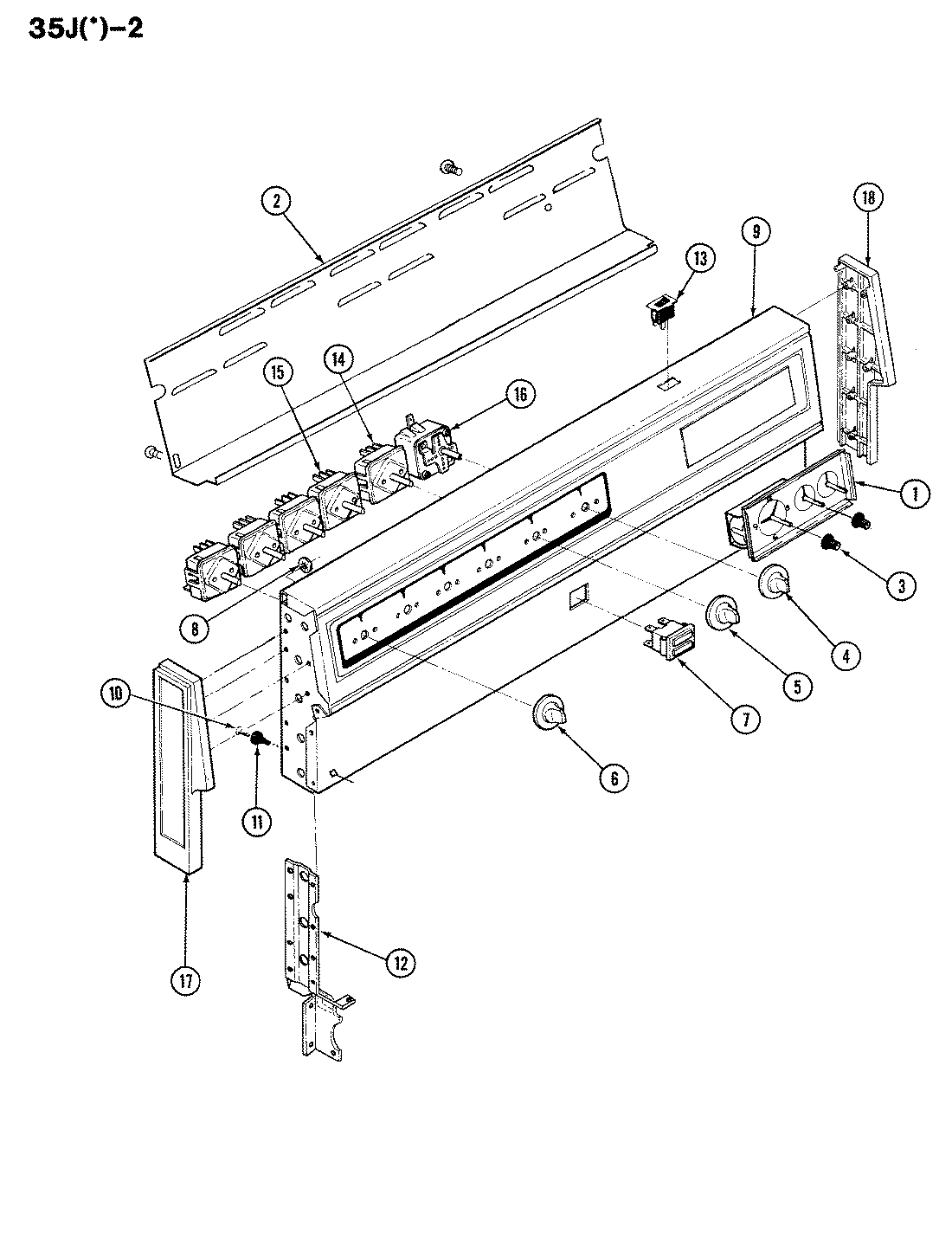

35JN-2CLX-EC 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7112P007-60
1	MAY 7601P131-60
1	MAY 7902P109-60
2	MAY 4005F283-80
3	MAY 7711P007-60
3	MAY 7711P126-60
4	MAY 7739P027-60
5	MAY 7739P025-60
6	MAY 7737P023-60
7	MAY 7407P068-60
9	MAY 2601W343-71
9	MAY 2601W263-81
11	SCREW
11	SPACER, HINGE (MAIN TOP)
12	MAY 7101P074-60
12	MAY 3807F349-51
12	MAY 3807F348-51
13	MAY 7403P102-60
14	MAY 7403P173-60
15	MAY 7403P268-60
15	MAY 7403P183-60
15	MAY 7403P269-60
16	MAY 7404P030-60
16	WP7112P004-60 Whirlpool Thermal Clip
16	MAY 7101P279-60
17	MAY 7726P031-60
18	MAY 7726P032-60
18	WP4159193 Whirlpool Screw
18	MAY 7703P238-60
