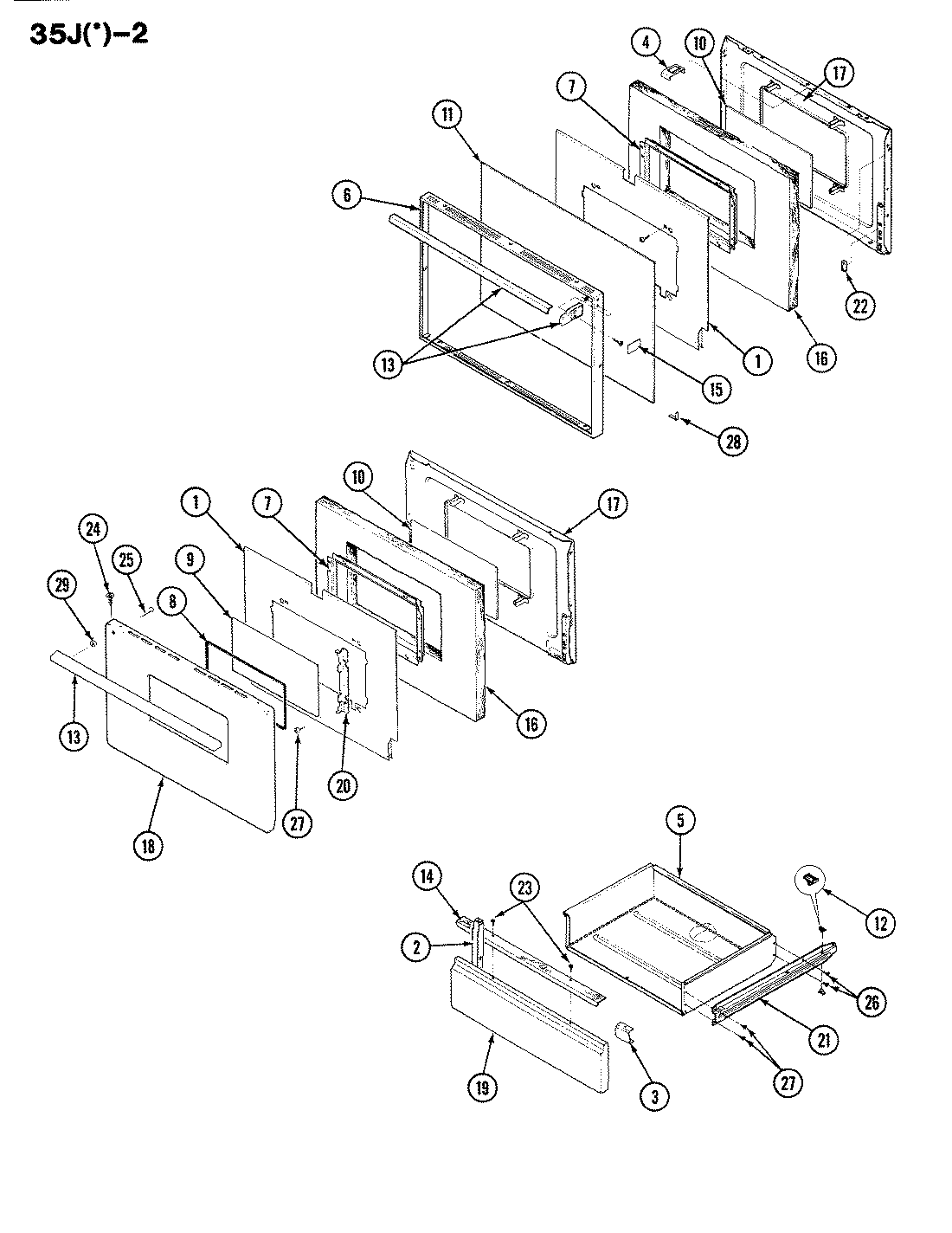

35JN-2CLX-ON 03 – DOOR

Products

Position	Product
1	MAY 3601F094-51
2	MAY 3802F044-51
3	MAY 3801F031-51
4	CLIP, DOOR
5	MAY 3405F008-80
6	MAY 7706P243-60
6	WP7101P126-60 Whirlpool Screw
7	MAY 3603F013-80
10	MAY 7902P035-60
11	MAY 7902P274-60
12	MAY 8016P004-60
12	SCREW
12	MAY 8016P009-60
13	MAY 7701P047-60
14	WP2411F013-71 Whirlpool Door Handle
15	MAY 7728P068-60
16	MAY 7002P012-60
17	MAY 2402W091-23
17	MAY 2402W154-19
19	MAY 2416F006-71
21	MAY 3406F020-80
21	MAY 3406F026-80
22	MAY 7208P011-60
23	MAY 7101P123-60
26	MAY 7101P061-60
27	MAY 7101P225-60
28	MAY 8010P045-60
29	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
