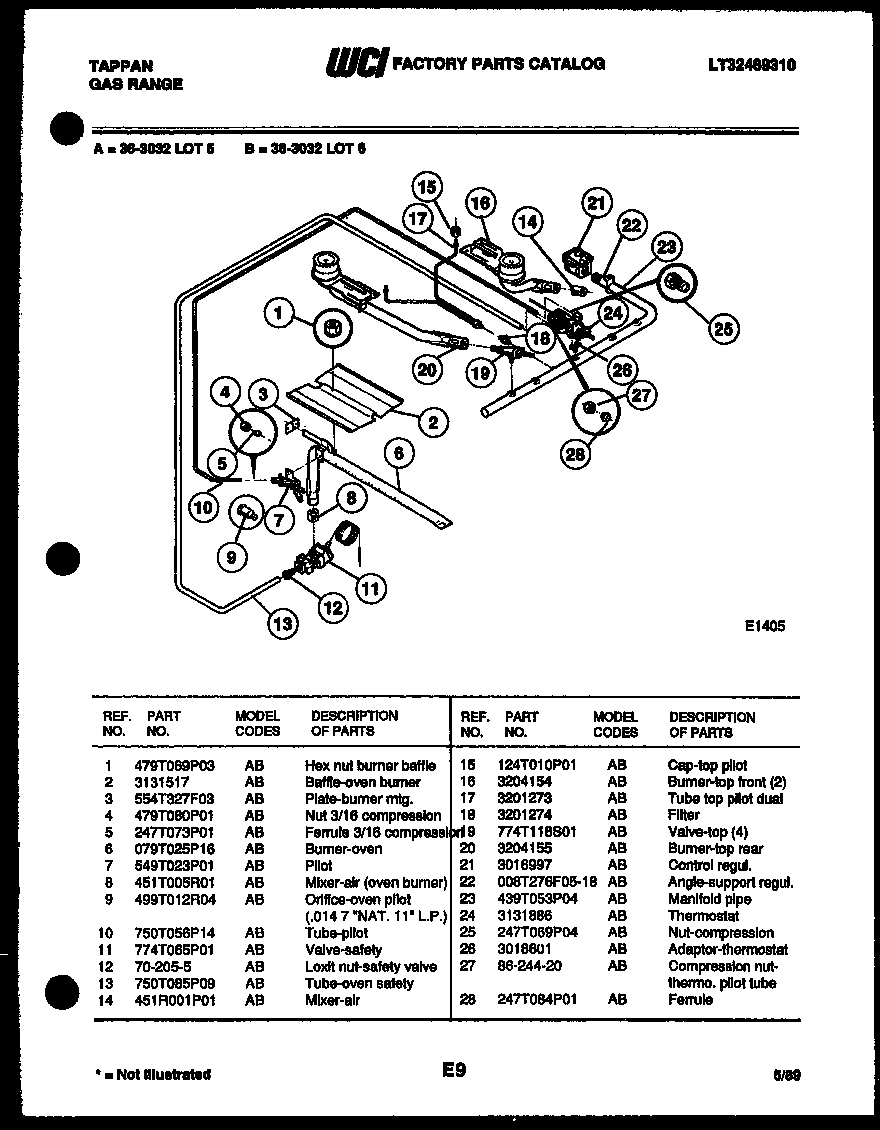

36-3032-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

36-3032-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

36-3032-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15303013272 Frigidaire Oven Nut
2BAFFLE-OVN BURNER
3WCI 554T327F03
4COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUBE 3/16“ (2)
5FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
6BURNR-OVN LOT 8-11
7WCI 549T023P01
8MIXER-AIR-OVN BURNR
9ORIFICE-PILOT .014 7 NAT. 11“ LP
10WCI 750T056P14
11WCI 774T065P01
12LOXIT FITTING-SAFETY VALVE 3/8“ (5/8-18 THD)
13WCI 750T085P09
14MIXER-AIR-TP BURNER LOT 7-11 (4)
15WCI 124T010P01
16WCI 3204154
17WCI 3201273
18WCI 3201274
19WCI 774T118S01
20WCI 3204155
21WCI 3016997
22WCI 008T276F05-18
23WCI 439T053P04
24THERMO-OVN (LOT 11, 12)
25COMPRESSION NUT 3/8“
26ADAPTER-THERMOSTAT
27WCI 86-244-20
28FERRULE 3/8“
