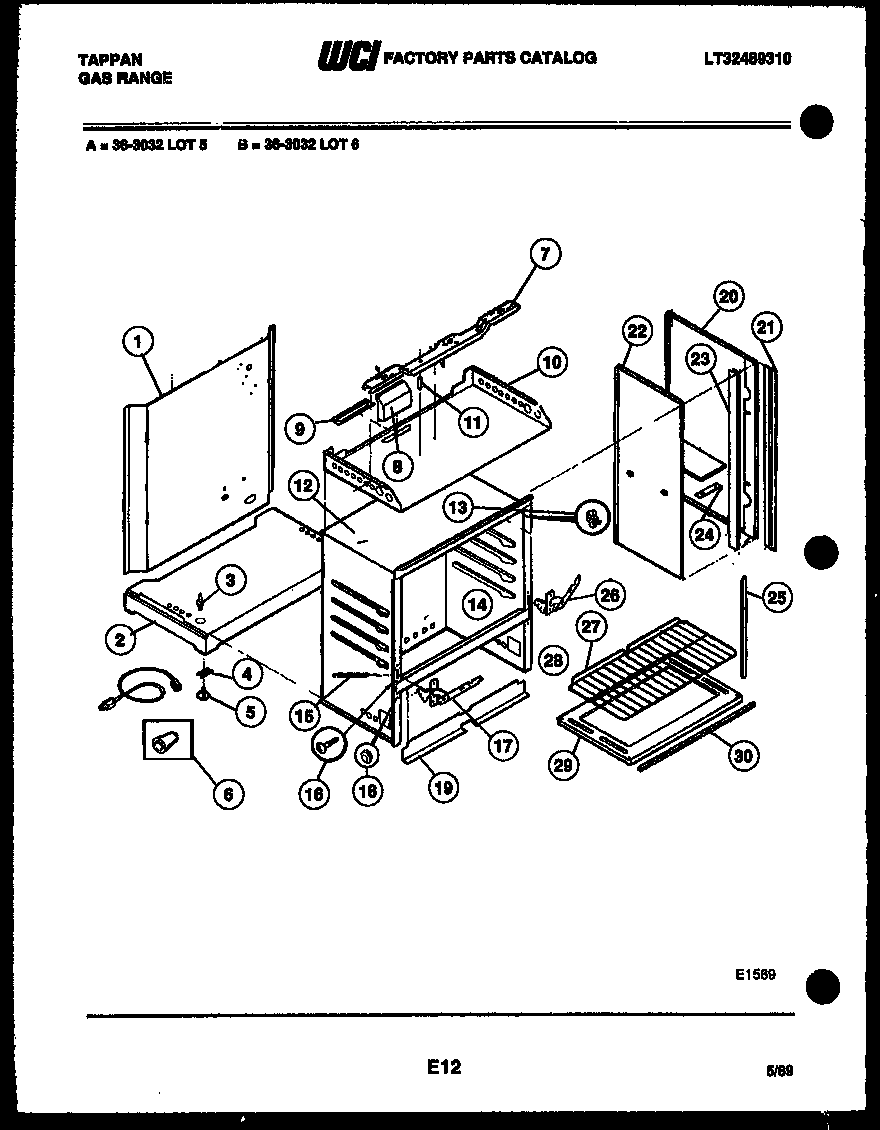

36-3032-00-06 08 – BODY PARTS

Products

Position	Product
*24338	3203010 Frigidaire Clip
*24338	RETAINER-OVN BURNR LOT 3
1	WCI 3131516
2	WCI 036T052W05-18
3	PIN-BODY PNL-GUIDE (2)
4	FASTNR-LEVEL LEG (4)
5	WCI 636M004P01
6	WCI 174T133P02
7	WCI 136T300F02-18
8	WCI 252T047W01-18
9	WCI 3131536
10	WCI 095T025W05-86
11	WCI 665T072P06
13	5303284616 Frigidaire Range Bulb Clip Thermostat
14	WCI 557T021P12
15	SPRING-OVN DR CAM (2)
16	SCREW-SHOULDER 8A X 3/8`` (4)
17	CAM, OVN DR, LH
18	PLUG BTTN-FRNT FRAME (4)
19B	INSUL-WOOL-BACK 2 X 23 X 28``
19C	INSUL-WOOL-CHANNEL 1 1/2 X 2 1/2 X 24``
19A	INSULATION,TOP & SIDES
19	SHIELD-WOOL-LWR FRONT
20A	WCI 515T047F13-00
20	PANEL-BODYSIDE-WHITE (2)
21	TRIM-PNL-VERTICAL (2)
22	WCI 048T010F01-18
23	WCI 136T216F01-18
24	WCI 072T552F01-08
25	SEAL, DOOR SIDES (2)
26A	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
26	CAM, OVN DR, RH
27	RACK-DOOR
28	WCI 008T479F01
29	WCI 058T035F01-86
30	SEAL-DR TOP & BTM
