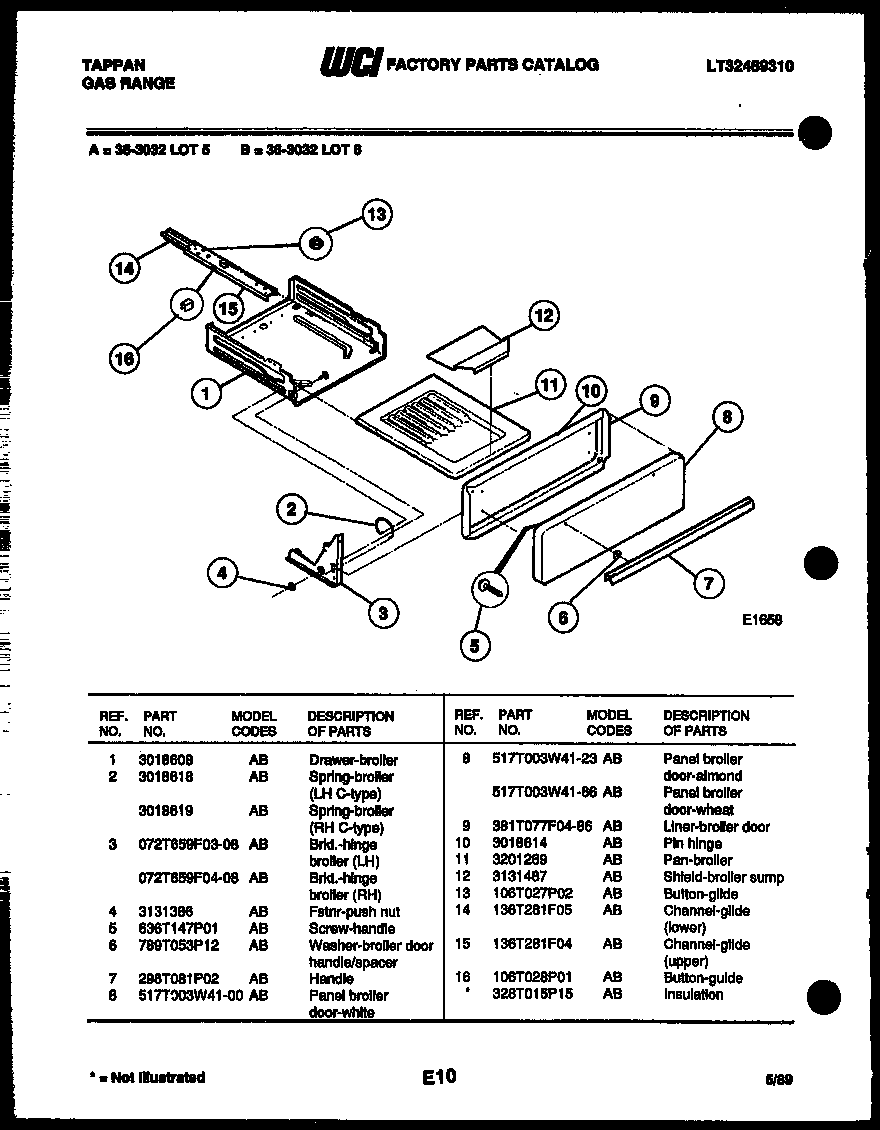

36-3032-23-06 06 – BROILER DRAWER PARTS

36-3032-23-06 06 – BROILER DRAWER PARTS

Written by

in

36-3032-23-06 06 – BROILER DRAWER PARTS

Products

PositionProduct
*24333INSULATION
1DRAWER-BROILER
2ASPRING-BROILER, RH
2WCI 3018618`
3AWCI 072T659F04-08
3WCI 072T659F03-08
4WCI 3131386
55303292012 Frigidaire Oven Screw
6WASHER-HNDL SCREW
7HANDL-BROILR DOOR
8WCI 517T003W41-23
9LINER-BROILER DOOR LOT 2,3
10PIN, HINGE (2)
11WCI 3201269
12SHIELD-BROILR SUMP CHROME
13BUTTON-GLIDE 27/64“ D.
14CHANNEL-GLIDE-LOWER LOT 2,3
15WCI 136T281F04
16BUTTON-GUIDE
