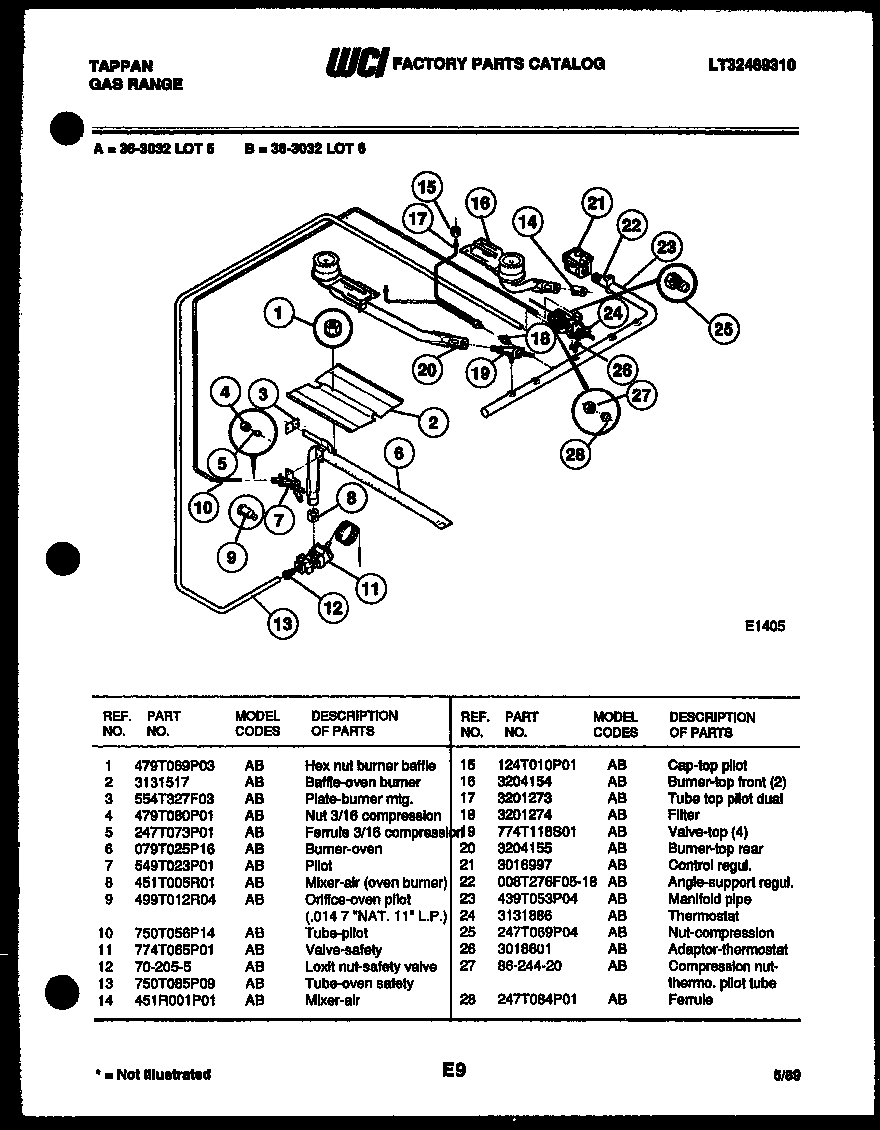

36-3032-66-06 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	5303013272 Frigidaire Oven Nut
2	BAFFLE-OVN BURNER
3	WCI 554T327F03
4	COMPRSSN NUT-TOP BURNER & OVN PILOT PILOT TUBE 3/16“ (2)
5	FERRULE-TP BURNER & OVN PILOT/PILOT TUBE (2)
6	BURNR-OVN LOT 8-11
7	WCI 549T023P01
8	MIXER-AIR-OVN BURNR
9	ORIFICE-PILOT .014 7 NAT. 11“ LP
10	WCI 750T056P14
11	WCI 774T065P01
12	LOXIT FITTING-SAFETY VALVE 3/8“ (5/8-18 THD)
13	WCI 750T085P09
14	MIXER-AIR-TP BURNER LOT 7-11 (4)
15	WCI 124T010P01
16	WCI 3204154
17	WCI 3201273
18	WCI 3201274
19	WCI 774T118S01
20	WCI 3204155
21	WCI 3016997
22	WCI 008T276F05-18
23	WCI 439T053P04
24	THERMO-OVN (LOT 11, 12)
25	COMPRESSION NUT 3/8“
26	ADAPTER-THERMOSTAT
27	WCI 86-244-20
28	FERRULE 3/8“
