36-3052-00-07 07 – BROILER DRAWER PARTS – Aparts

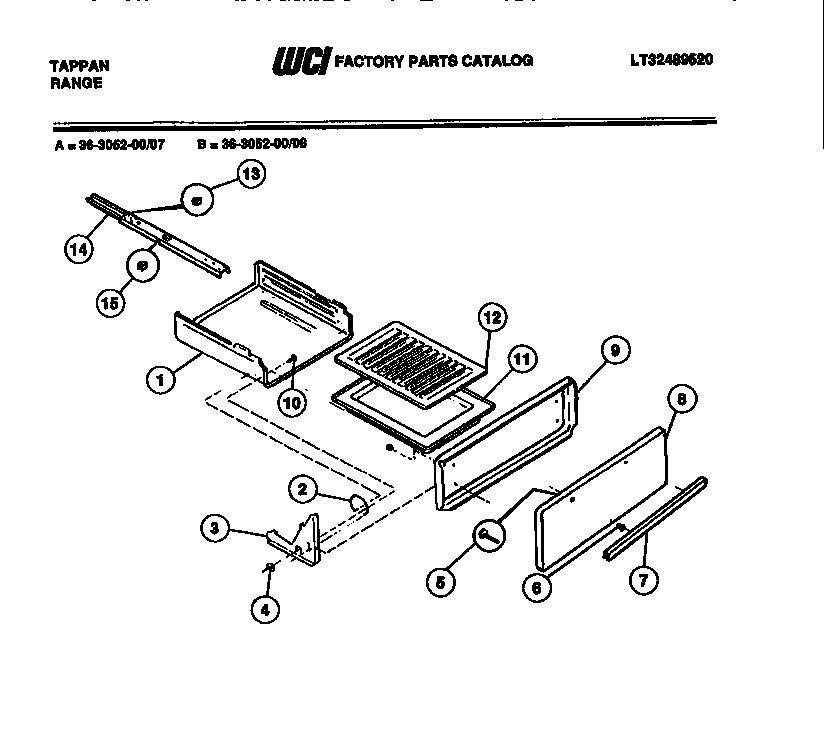

36-3052-00-07 07 – BROILER DRAWER PARTS

Products

Position	Product
1	DRAWER-BROILER
2A	SPRING-BROILER, RH
2	WCI 3018618`
3	WCI 072T659F03-08
3A	WCI 072T659F04-08
4	WCI 3131386
5	5303292012 Frigidaire Oven Screw
6	WASHER-HNDL SCREW
7	WCI 296T081S01
8	PANEL-BROILER DOOR-WHITE
9	LINER-BROILER DOOR LOT 2,3
10	PIN, HINGE (2)
11	WCI 3013568
12	WCI 3131356
12A	INSULATION
13	BUTTON-GLIDE 27/64`` D.
14	CHANNEL-GLIDE-UPR LOT 2,3
15	BUTTON-GUIDE
