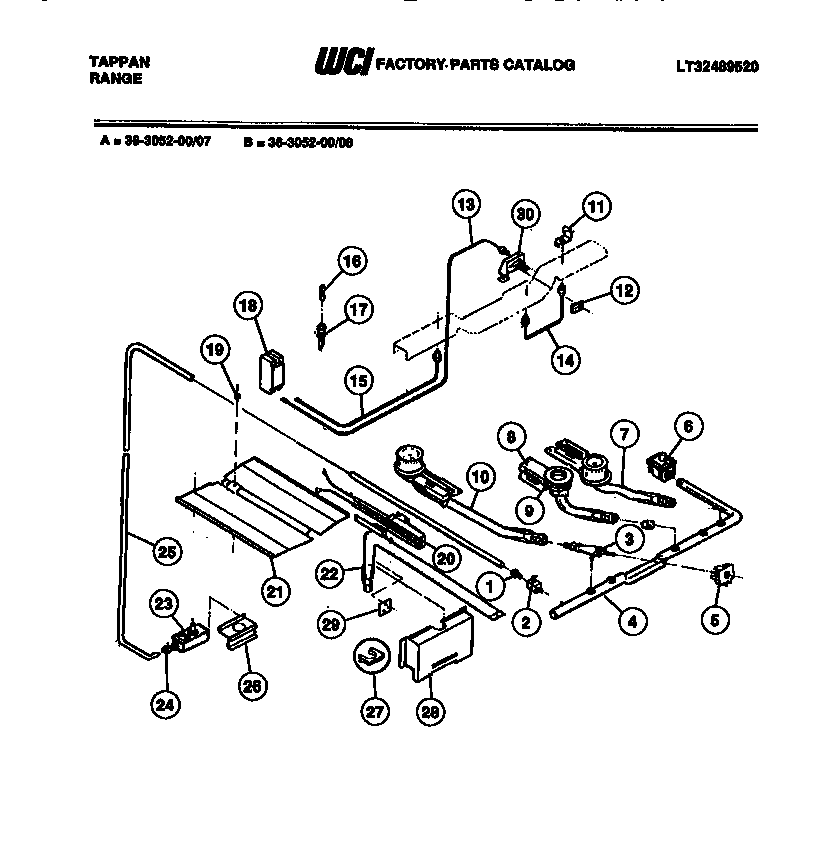

36-3052-00-07 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
2WCI 774T121P01
3VALVE, TOP BURNERS (4)
4WCI 439T053P02
5316035200 Frigidaire Ignition Switch
6WCI 3016997
7WCI 3204154
8WCI 750T141S05
9WCI 007T001P01
10WCI 3204155
113016993 Frigidaire Oven Retainer
12WCI 612T110F01
13WCI 036T049S10
14WCI 036T049S14
15WCI 036T049S11
16FUSE, BUSS
17RECEPTACLE, FUSE HOLDER
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
195303013272 Frigidaire Oven Nut
205303935066 Frigidaire Oven Flat Igniter 17" Leads
21BAFFLE-OVN BURNER
22WCI 079T025P13
23WCI 774T117P04
24WCI 247T079P01
25TUBE, OVEN SUPPLY
26WCI 072T655F01
27FASTENER-VALVE MTG
28COVER, SAFETY VALVE
29WCI 709T041P01
29BWCI 3131535
29AWCI 008T276F05-18
30WCI 072T781F01
