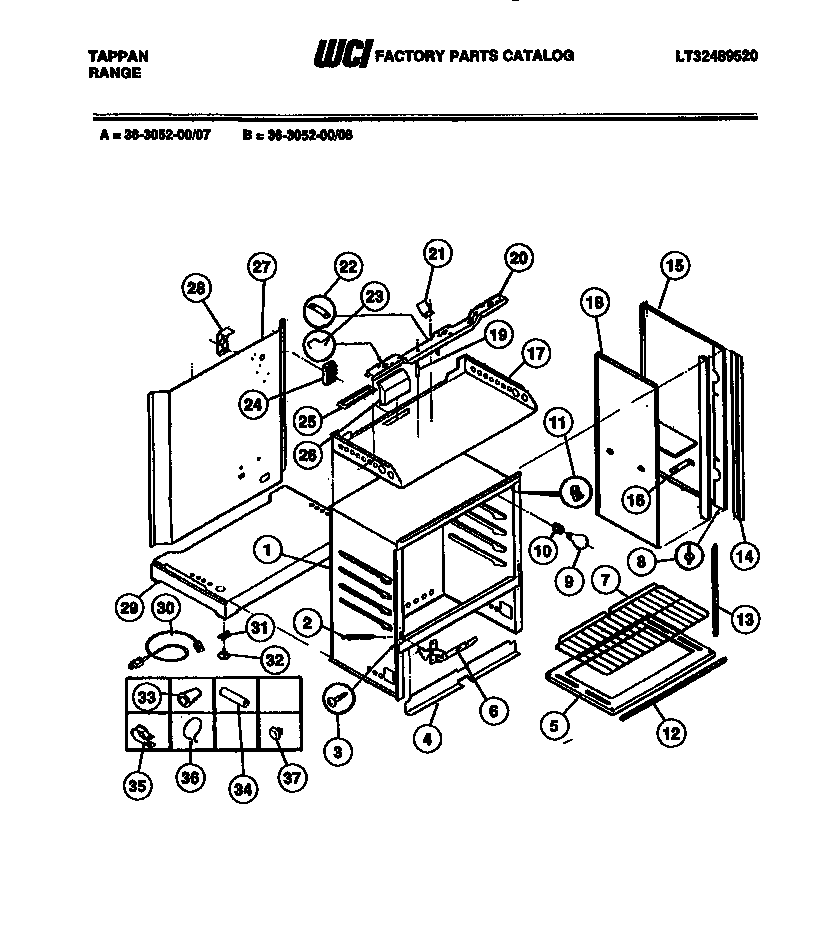

36-3052-00-07 09 – BODY PARTS

Products

Position	Product
*31351	INSULATION-WOOL (BACK)
*31351	INSULATION
*31351	INSULATION,TOP & SIDES
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8`` (4)
4	SHIELD-WOOL-LWR FRONT
5	WCI 058T035F01-86
5A	SCREW-OVN BTM 8-18 X 1`` BPT KNRLD HD (2) (NON-ILLUSTRATED)
6	WCI 3205939
6A	WCI 3205940
6B	KIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
7	RACK-DOOR
8	PIN-BODY PNL-GUIDE (2)
9	316538904 Frigidaire Oven Lamp Light
10	WCI 662T012P11
11	5303284616 Frigidaire Range Bulb Clip Thermostat
12	SEAL-DR TOP & BTM
13	SEAL, DOOR SIDES (2)
14	TRIM-PNL-VERTICAL (2)
15A	WCI 515T047F13-00
15	PANEL-BODYSIDE-WHITE (2)
16	WCI 136T216F01-18
17	WCI 095T025W05-86
18	WCI 048T010F02-18
19	WCI 665T072P06
20	WCI 136T300F03-18
21	WCI 600T014F01
22	5303289684 Frigidaire FASTENER
23	RETAINER-OVN BURNR LOT 3
24	WCI 709T033P02
25	WCI 3131536
26	WCI 252T047W01-18
27	WCI 3131516
28	WCI 072T612F02
29	WCI 036T052W05-18
30	CORD-POWER SUPPLY
31	FASTNR-LEVEL LEG (4)
32	SCREW-LEVELING
33	WCI 174T133P01
34	SLEEVE, INSULATOR
35	FASTNR-CLAMP-POWER CORD
36	FASTENER-PURSE LOCK
37	PLUG BTTN-FRNT FRAME (4)
