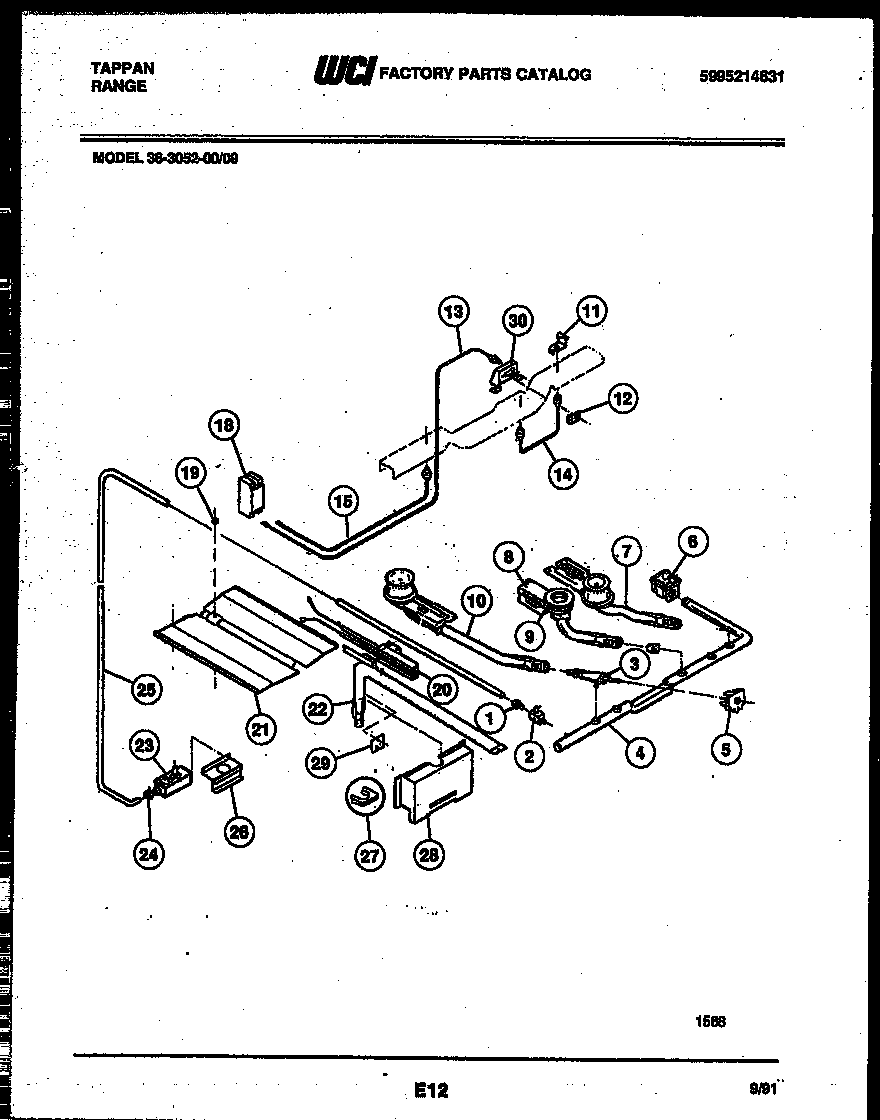

36-3052-00-09 08 – BURNER, MANIFOLD AND GAS CONTROL

36-3052-00-09 08 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

36-3052-00-09 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
2WCI 774T121P01
3WCI 5303208062
4WCI 439T053P02
5316035200 Frigidaire Ignition Switch
6WCI 5303016997
7WCI 5303204154
8WCI 750T141S05
9WCI 5300007473
10WCI 5303204455
113016993 Frigidaire Oven Retainer
12WCI 5303281925
13WCI 5303207566
14WCI 5303206944
15WCI 5303206942
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
195303013272 Frigidaire Oven Nut
205303935066 Frigidaire Oven Flat Igniter 17" Leads
21BAFFLE-OVEN BOTTOM
22WCI 5303208304
23WCI 5303912679
24WCI 247T079P01
25TUBE, OVEN SUPPLY
26WCI 072T655F01
27FASTENER-VALVE MTG
28COVER, SAFETY VALVE
29AWCI 008T276F05-18
29BWCI 3131535
29WCI 709T041P01
30WCI 072T781F01
