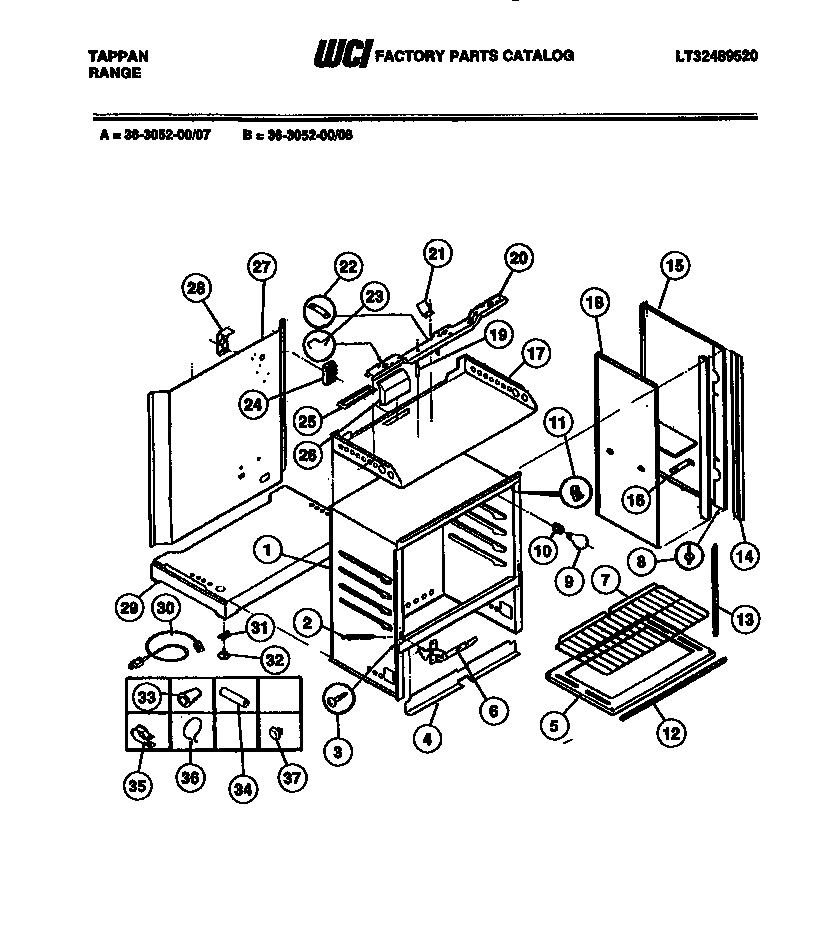

36-3052-23-07 09 – BODY PARTS

Products

PositionProduct
*31351INSULATION,TOP & SIDES
*31351INSULATION
*31351INSULATION-WOOL (BACK)
2SPRING-OVN DR CAM (2)
3SCREW-SHOULDER 8A X 3/8“ (4)
4SHIELD-WOOL-LWR FRONT
5WCI 058T035F01-86
5ASCREW-OVN BTM 8-18 X 1“ BPT KNRLD HD (2) (NON-ILLUSTRATED)
6WCI 3205939
6AWCI 3205940
6BKIT-DOOR ADJUSTMNT (NON-ILLUSTRATED)
7RACK-DOOR
8PIN-BODY PNL-GUIDE (2)
9316538904 Frigidaire Oven Lamp Light
10WCI 662T012P11
115303284616 Frigidaire Range Bulb Clip Thermostat
12SEAL-DR TOP & BTM
13SEAL, DOOR SIDES (2)
14TRIM-PNL-VERTICAL (2)
15AWCI 515T047F13-23
15PANEL-BODYSIDE-ALMOND (2)
16WCI 136T216F01-18
17WCI 095T025W05-86
18WCI 048T010F02-18
19WCI 665T072P06
20WCI 136T300F03-18
21WCI 600T014F01
225303289684 Frigidaire FASTENER
23RETAINER-OVN BURNR LOT 3
24WCI 709T033P02
25WCI 3131536
26WCI 252T047W01-18
27WCI 3131516
28WCI 072T612F02
29WCI 036T052W05-18
30CORD-POWER SUPPLY
31FASTNR-LEVEL LEG (4)
32SCREW-LEVELING
33WCI 174T133P01
34SLEEVE, INSULATOR
35FASTNR-CLAMP-POWER CORD
36FASTENER-PURSE LOCK
37PLUG BTTN-FRNT FRAME (4)
