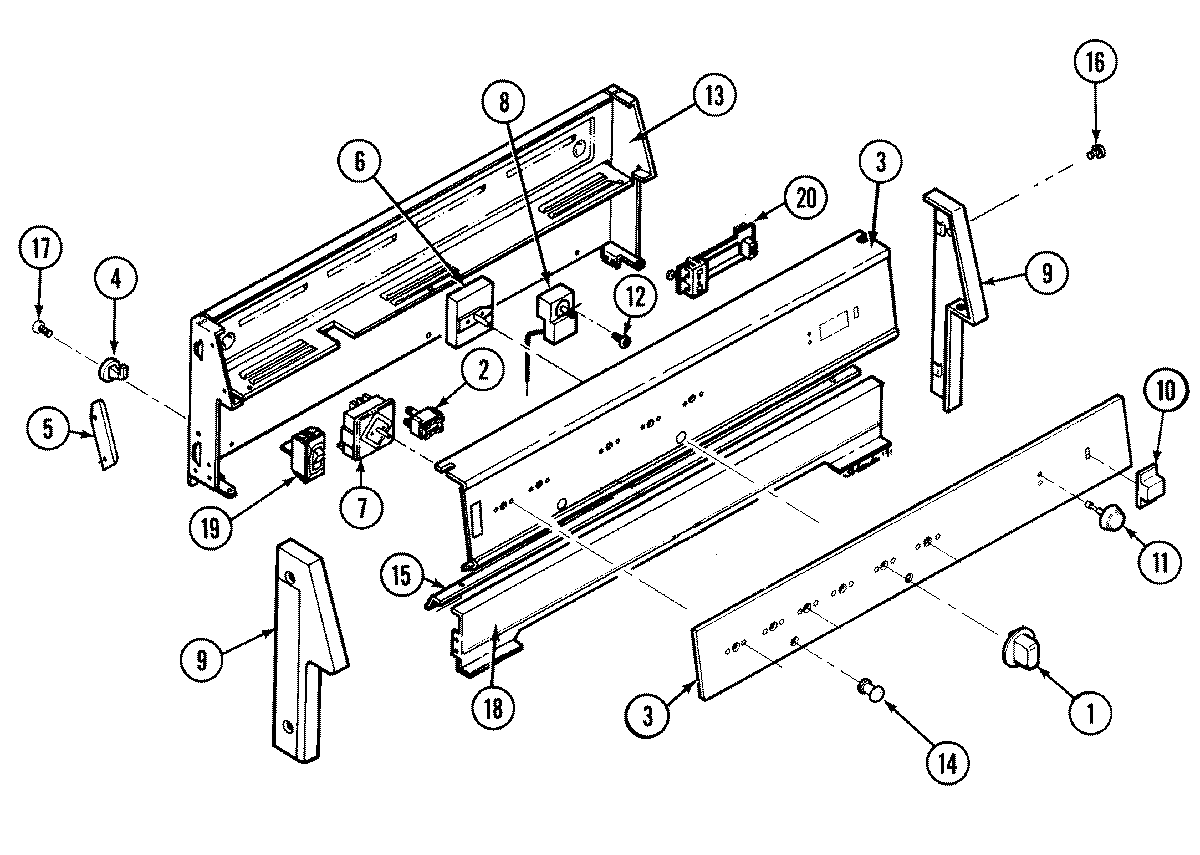

3624XPW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	MAY 7407P081-60
3	MAY 4876S048-59
4	SPACER, HINGE (MAIN TOP)
5	MAY 3807F436-45
5	MAY 3807F435-45
6	WP7403P255-60 Whirlpool Selector Switch
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P081-60
9	MAY 7101P032-60
9	MAY 7726P067-60
9	MAY 7726P068-60
10	MAY 3801F296-51
10	MAY 7711P469-60
11	MAY 7711P468-60
12	SCREW
13	MAY 4001F085-51
14	W11690159 Whirlpool Handle
15	MAY 3604F201-80
16	SCREW
17	MAY 7118P015-60
18	MAY 2612W039-81
18	MAY 2612F036-81
19	7403P067-60 Whirlpool Light Switch
20	MAY 7101P293-60
20	MAY 7602P104-60
