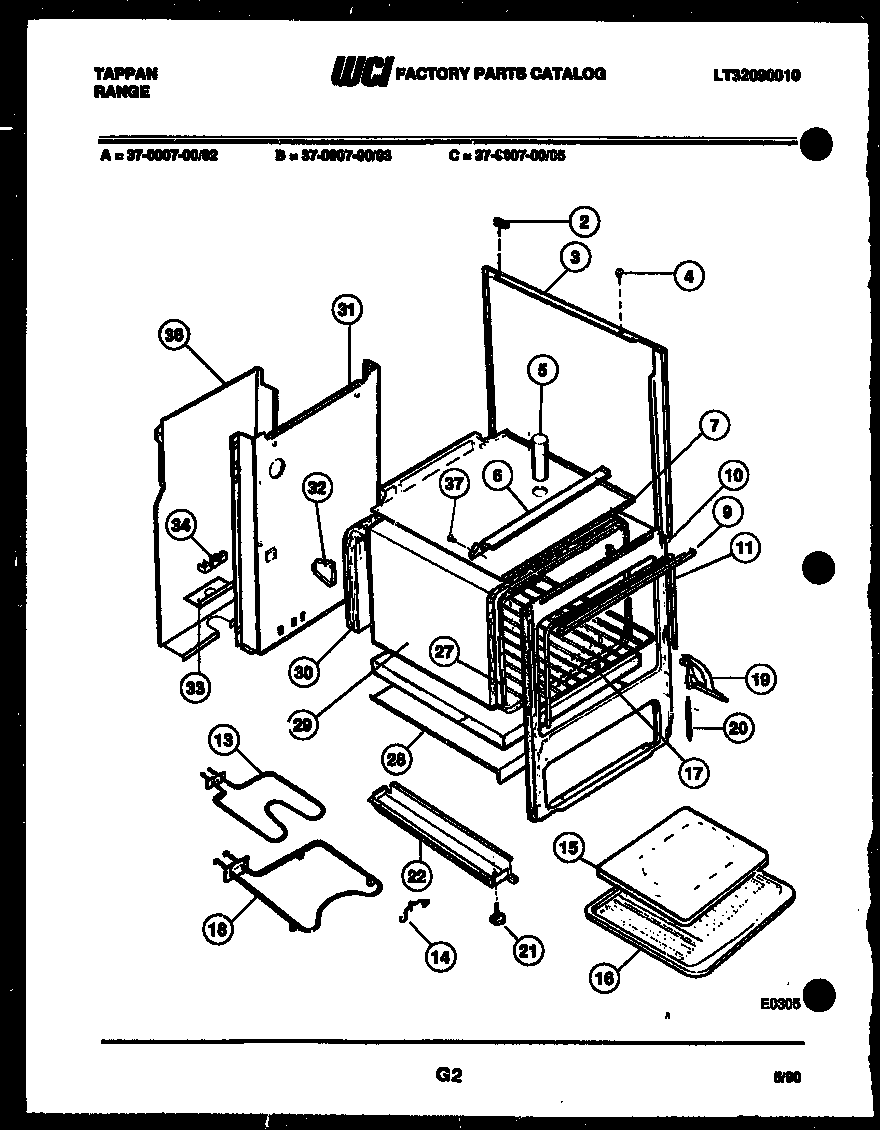

37-0007-23-02 06 – BODY PARTS

Products

Position	Product
*11327	PLATE=GROUND STRAP
*11327	WCI 5300009126
2	GROMMET (2)
3	PANEL BODYSIDE-ALMD
4	GROMMET
5	TUBE-VENT
6	SHIELD
7	BURNER BOX-BTM
9	SUPPORT-CONTROL PNL
10	WCI 3051068
11	SEAL OVEN DOOR
13	WCI 3051071
14	WCI 3051072
15	WCI 3051073
16	BROILER-PAN
17	WCI 3051075
18	WCI 5303051076
19	318348801 Frigidaire Oven Left Side Door Hinge
19A	HINGE ASSY-RH
20	SPRING-OVEN DOOR
21	LEG LEVELLER (4)
22	RAIL-BASE
27C	LINER-OVEN BACK
27D	LINER-OVEN BOTTOM
27	OVEN LINER SIDE RH
27A	WCI 3051087
27B	LINER, OVEN TOP
28	PAN BOTTOM
29	INSUL WRAP
30	INSUL BACK
31	WCI 3051095
32	SUPPORT-REAR OVN (2)
33	SUPPORT-CONDULT
34	5304409888 Frigidaire Oven Terminal Block with Hardware
36	COVER-WIRE
37	SNAP – BUSHING
