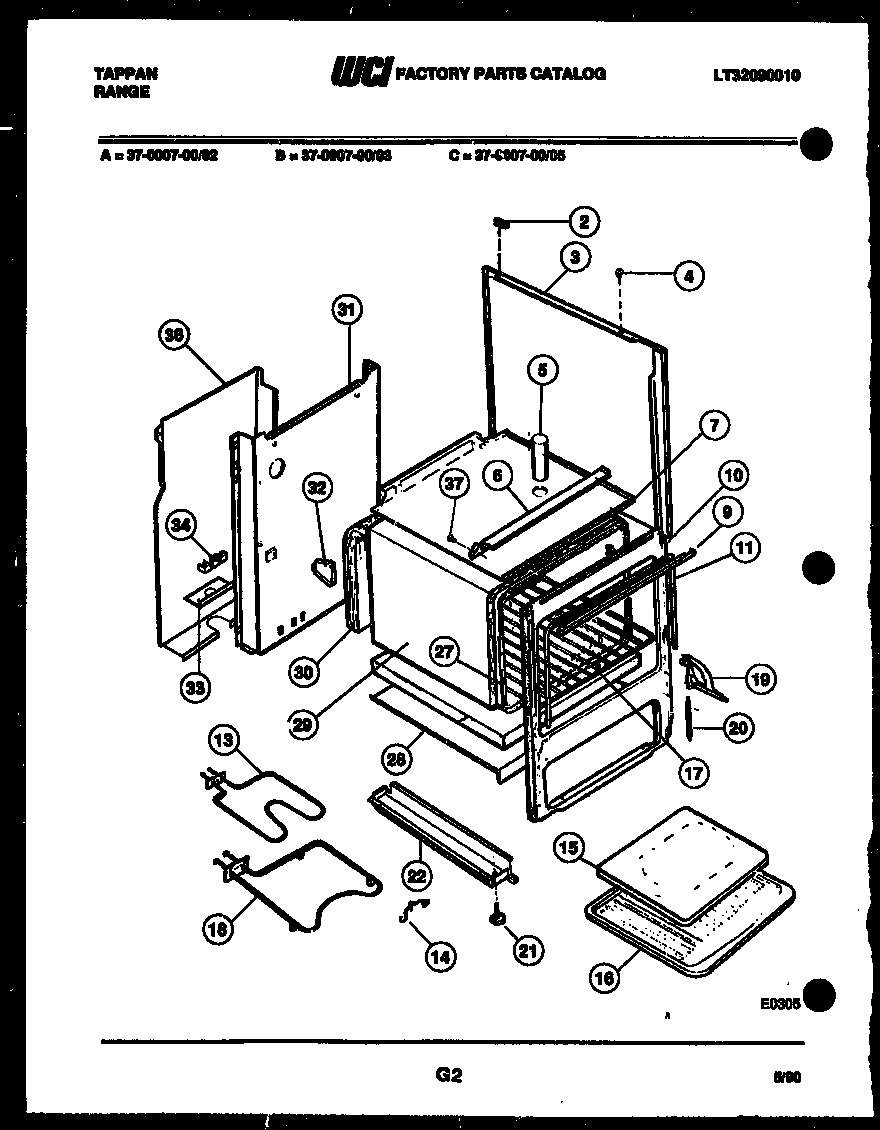

37-0007-23-05 06 – BODY PARTS

Products

Position	Product
*11327	ANTI-TIP KIT
*11327	PLATE=GROUND STRAP
*11327	WCI 5300009126
2	GROMMET-MAINTOP
3	PANEL BODYSIDE-ALMD
4	GROMMET
5	TUBE-VENT
6	SHIELD
7	BURNER BOX-BTM
9	SUPPORT-CONTROL PNL
10	FRAME-FRONT
11	SEAL OVEN DOOR
13	WCI 3051071
14	SUPPORT-BROIL ELMNT
15	WCI 5303017712
16	WCI 5303016973
17	WCI 3016158
18	WCI 5303051076
19	318348801 Frigidaire Oven Left Side Door Hinge
19A	HINGE ASSY-RH
20	SPRING-OVEN DOOR
21	LEG LEVELLER (4)
22	RAIL-BASE
27D	WCI 3017720
27C	WCI 3017710
27	LINER-RIGHT SIDE
27B	WCI 3017708
27A	LINER-LEFTSIDE
28	PAN BOTTOM
29	INSUL WRAP
30	INSUL BACK
31	WCI 3051095
31	BACK MAIN
32	SUPPORT-REAR OVN (2)
33	SUPPORT-CONDUIT
34	5304409888 Frigidaire Oven Terminal Block with Hardware
36	COVER-WIRE
37	WCI 08008009
