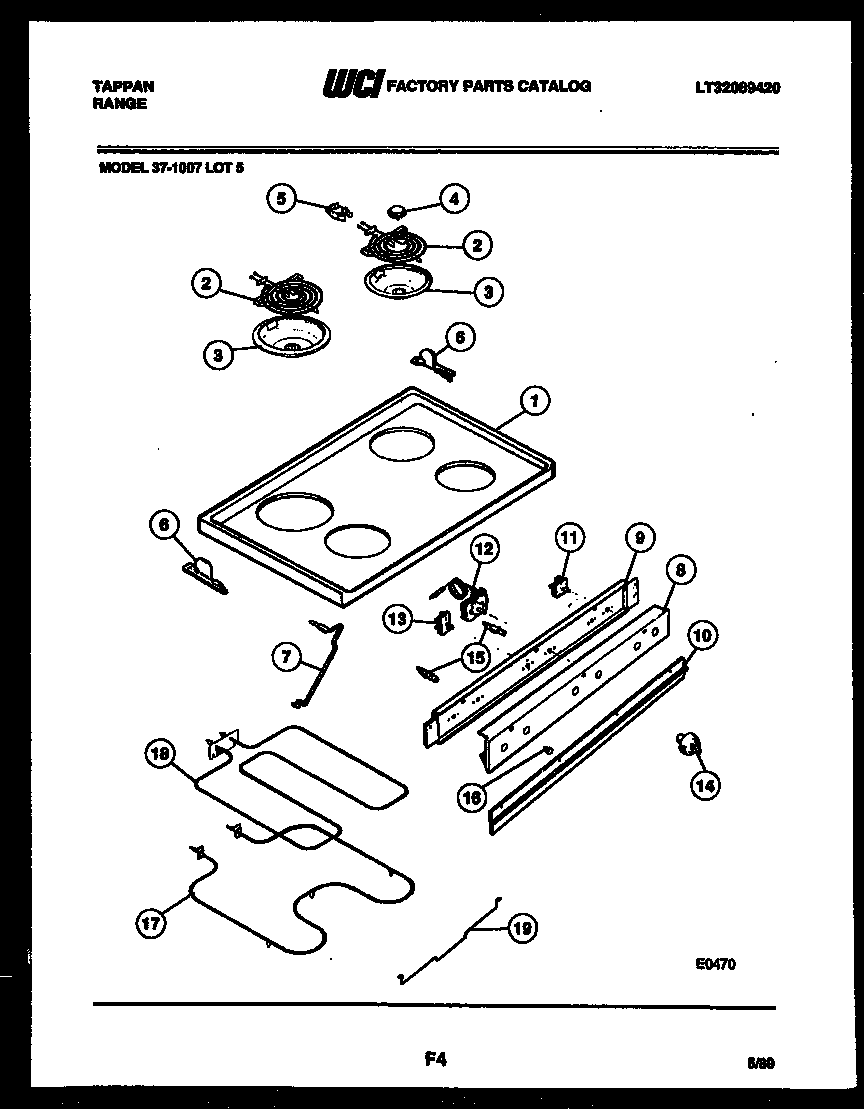

37-1007-66-05 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*25265RETAINER-LENS
1MAIN TOP (WHEAT)
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 445T006P01
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRKT MAIN TOP HNG RH
6BRKT MAIN TOP HNG LH
7ROD-MAIN TOP SUPT.
8WCI 3051207
9WCI 3051454
10WCI 3051145
11SWITCH S/U (4)
12THERMO OVN-LOWER
13WCI 3016812
14AKNOB-THERMOS.
14BKNOB-SEL. SW.
14WCI 3051173
15INDICATOR LIGHT (4)
15AINDICATOR-LITE OVN
16LENS-IND LIGHT (2)
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
