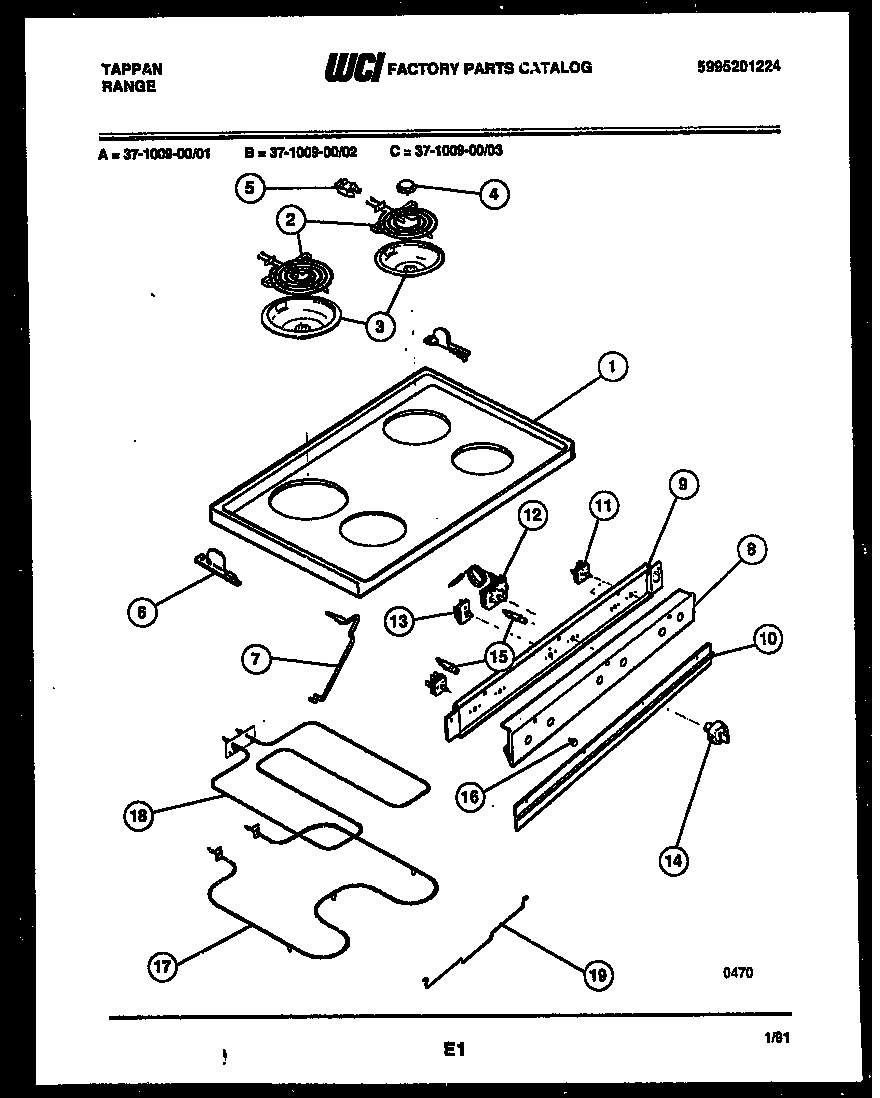

37-1009-00-01 04 – COOKTOP AND BROILER PARTS

37-1009-00-01 04 – COOKTOP AND BROILER PARTS

Written by

in

37-1009-00-01 04 – COOKTOP AND BROILER PARTS

Products

PositionProduct
*25115RETAINER-LENS
1WCI 3051379
1WCI 3051380
2316442300 Frigidaire Oven 2100W Coil Element 8
2A318372210 Frigidaire Oven Range 6" 1250W Surface Element
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4MEDALLION, STAINLESS STEEL, SURF ELEM
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRACKET-HINGE,MAIN TOP LH
6ABRACKET-HINGE,MAIN TOP RH
7ROD – MAINTOP SUPT.
8WCI 3204683
9WCI 3051454
10WCI 3204623
11A5303935086 Frigidaire Oven Top Burner Switch Kit
12THERMO OVN-LOWR
13WCI 3016812
14AKNOB – THERMOSTAT
14WCI 3204681
14BKNOB – SW SELECTOR
15BIND LIGHT-250V (2)
15WCI 5308037896
16JEWEL LENS-AMBER
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
