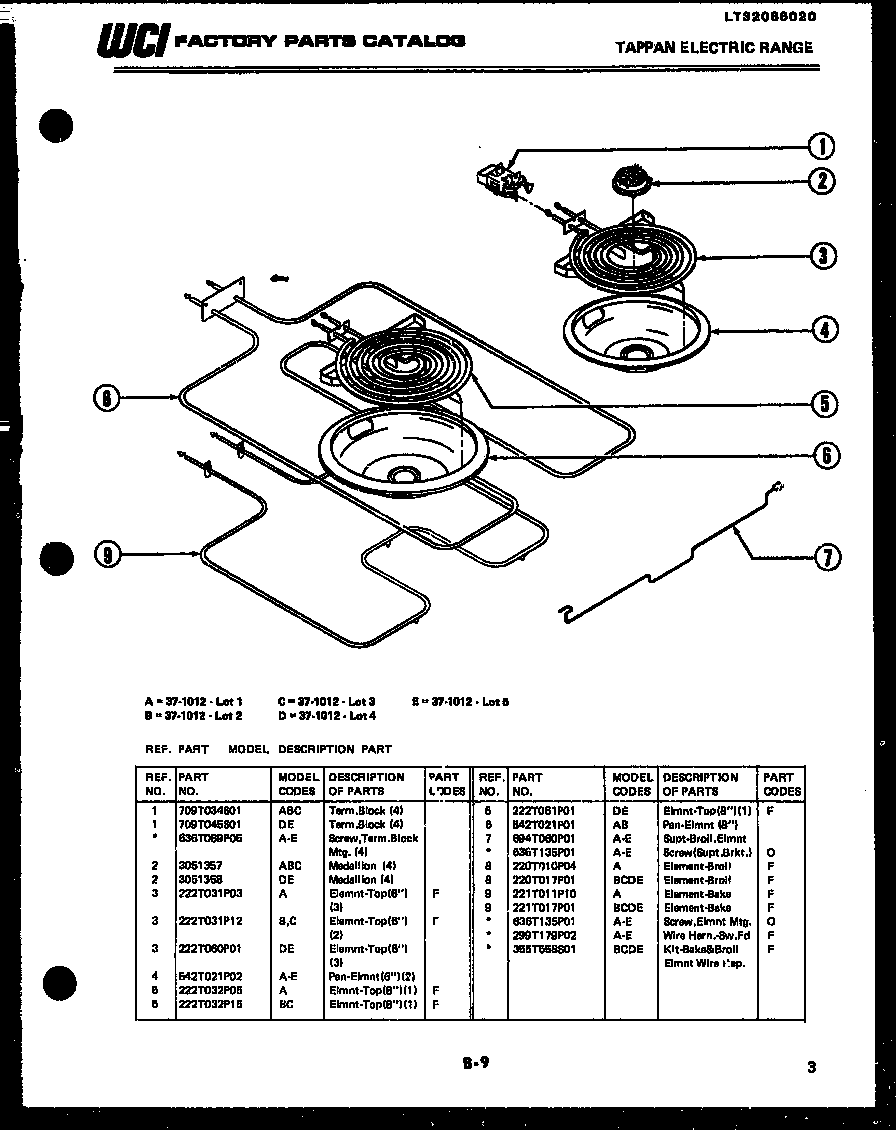

37-1012-66-05 03 – BROILER PARTS

37-1012-66-05 03 – BROILER PARTS

Written by

in

37-1012-66-05 03 – BROILER PARTS

Products

PositionProduct
*77920KIT BAKE & BROIL EL. WIRE REPAIR
*77916WIRE HARN. SW.
1ASCREW (4) (NON-ILLUSTRATED)
15303935058 Frigidaire Oven Burner Receptacle Kit
2MEDALLION
3318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5316442300 Frigidaire Oven 2100W Coil Element 8
7ASCREW 8 X 18 X 1/2“ HEX WSH HD (2)
7SUPT BROIL. ELEMNT
8220T017P02 Frigidaire Broil Element
9WCI 221T017P01
