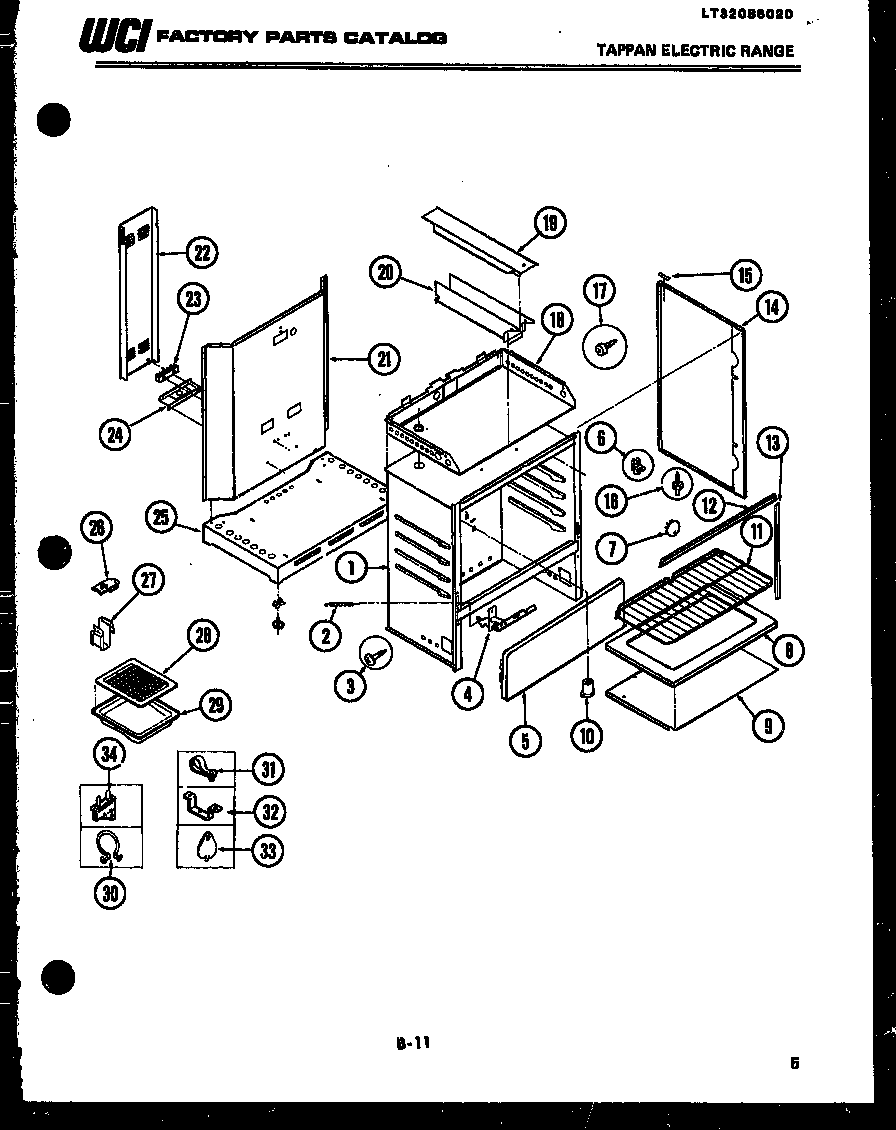

37-1015-00-03 04 – BODY PARTS

37-1015-00-03 04 – BODY PARTS

Written by

in

37-1015-00-03 04 – BODY PARTS

Products

PositionProduct
*78302INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED)
*78342PAIN-TCH-UP FRESH AVOCADO
*78347PAINT-TCH-UP HARVEST WHEAT
*78328CORD, SUPPLY (NON-ILLUSTRATED)
*78315TRIM-PNL-VERTICAL (2)
*78351WCI 560T691P131
*78306INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM
*78323WCI 740T365P01
*78319WCI 740T365P02
*78338WCI 508T026P02
*78311INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62“
*783325303321319 Frigidaire Refrigerator White Touch Up Paint
2SPRING-OVN DR CAM (2)
3SCREW-SHOULDER 8A X 3/8“ (4)
4CAM-OVEN DOOR L
5WCI 517T003W35-57
5WCI 517T003W35-23
5WCI 517T003W35-00
5WCI 517T003W35-66
65303284616 Frigidaire Range Bulb Clip Thermostat
7WCI 557T021P12
8WCI 058T035F02-89
9WCI 665T119F03-18
10WCI 750T208W06
11RACK, OVEN (2)
12SEAL-DR TOP & BTM
13SEAL, DOOR SIDES (2)
14PNL. BODY (L&R) (FR. AVOCADO) (2)
14PNL-BDYSDE AVOC (2) LOT 9-11
14PNL, BODY, ALMD (2)
14PNL-BDYSDE WHTE (2) LOT 11
14PNL. BODY (L & R) (HARV. WHEAT) (2)
14PNL. BODY (L&R) (FR. AVOCADO) (2)
14PNL, BODY, WHITE (2)
14PNL-BDYSDE WEAT (2) LOT 11
14PNL, BODY, ALMD (2)
14PNL, BODY, ALMD (2)
14PNL. BODY (L & R) (HARV. WHEAT) (2)
14PNL, BODY, WHITE (2)
15GLIDE, MAIN TOP (2)
16SCREW, GUIDE (2)
17WCI 636T083P01
18BURNER BOX (CHAR. GRAY PORC W/ FR.)
19CHANNEL, CVR
20CHANNEL, WIRE
21WCI 021T020F02
21ASCREW 8 X 18 X 1/2“ HEX WSH HD (2)
22WCI 655T129F01
22ASCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
23DWCI 711T048P01
235304409888 Frigidaire Oven Terminal Block with Hardware
23ASCREW TERM (2) (NON-ILLUSTRATED)
23ESCREW BRND STRAP
23B(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
24WCI 008T230W03-18
25WCI 036T050W01-18
27FSTNR CABLE CLAMP
28INSERT-BROILER PAN (CHAR. GRAY W/ F)
29PAN-BROILER (CHAR. GRAY W/ F)
