37-1022-66-04 02 – BODY PARTSadmin2025-04-26T08:46:53+00:0037-1022-66-04 02 – BODY PARTS

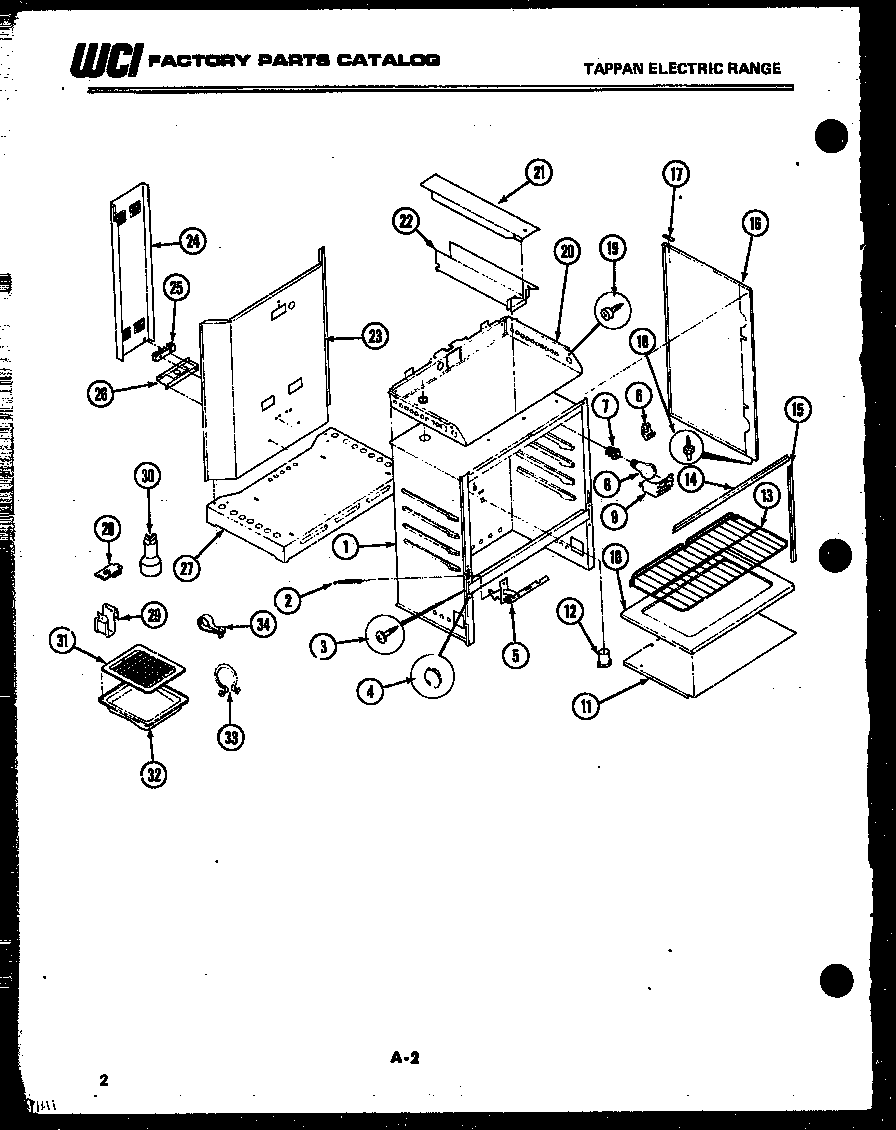

Products
| Position | Product |
|---|
| *30600 | INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM |
| *30618 | WCI 740T365P01 |
| *30604 | INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62`` |
| *30581 | INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED) |
| *30613 | WCI 740T365P02 |
| *30650 | PAINT-TCH-UP HARVEST WHEAT |
| *30625 | CORD, SUPPLY (NON-ILLUSTRATED) |
| *30609 | TRIM-PNL-VERTICAL (2) |
| 2 | SPRING-OVN DR CAM (2) |
| 3 | SCREW-SHOULDER 8A X 3/8`` (4) |
| 4 | BUTTON-GLIDE 27/64`` D. |
| 5 | CAM, OVN DR, RH |
| 5 | CAM, OVN DR, LH |
| 6 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 7 | WCI 662T012P03 |
| 8 | 316538904 Frigidaire Oven Lamp Light |
| 9 | SHIELD BULB |
| 10 | WCI 058T035F02-87 |
| 11 | WCI 655T119F03-18 |
| 12 | WCI 750T214W10-08 |
| 13 | RACK, OVEN (2) |
| 15 | SEAL, DOOR SIDES (2) |
| 16 | PNL. BODY (L & R) (HARV. WHEAT) (2) |
| 17 | GLIDE, MAIN TOP (2) |
| 18 | SCREW, GUIDE (2) |
| 19 | WCI 636T083P01 |
| 20 | WCI 095T029W02-87 |
| 21 | CHANNEL, CVR |
| 22 | CHANNEL, WIRE |
| 23 | WCI 021T020F02 |
| 23A | SCREW 8 X 18 X 1/2`` HEX WSH HD (2) |
| 24A | SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED) |
| 24 | WCI 655T129F01 |
| 25 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 25D | WCI 711T048P01 |
| 25C | NUT-HEX BRASS (6) (NON-ILLUSTRATED) |
| 25A | SCREW TERM (2) (NON-ILLUSTRATED) |
| 25E | SCREW BRND STRAP |
| 26 | WCI 008T230W03-18 |
| 27 | WCI 036T050W01-18 |
| 28 | FASTENER-8AJ (2) |
| 29 | FSTNR CABLE CLAMP |
| 30 | 711T047P93 Frigidaire Oven Terminal |
| 31 | INSERT-BROILR PAN LOT 1 |
| 32 | PAN-BROILER LOT 1 |
| 33 | FASTENER-PURSE LOCK |
| 34 | CLAMP, CABLE (2) |
