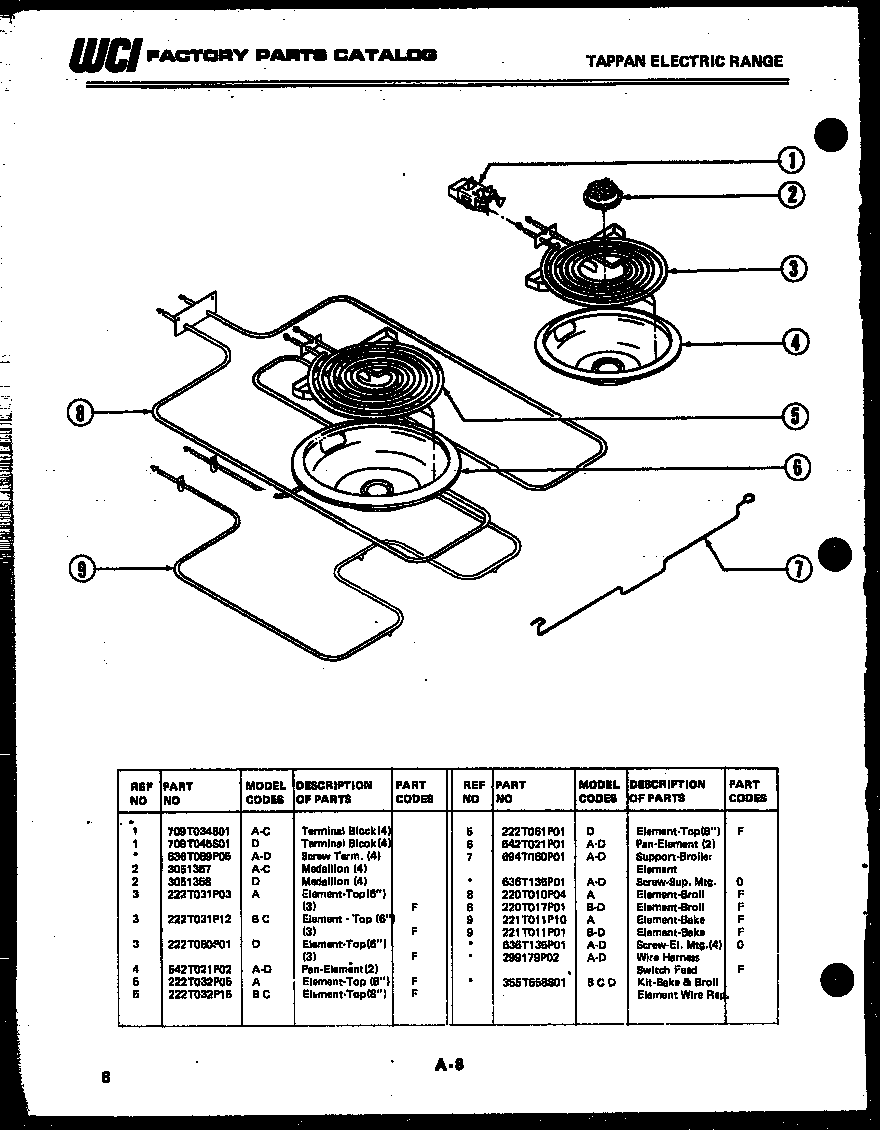

37-1022-66-04 07 – BROILER PARTS

37-1022-66-04 07 – BROILER PARTS

Written by

in

37-1022-66-04 07 – BROILER PARTS

Products

PositionProduct
*31076KIT BAKE & BROIL EL. WIRE REPAIR
*31069WCI 299179P02
15303935058 Frigidaire Oven Burner Receptacle Kit
1ASCREW (4) (NON-ILLUSTRATED)
2MEDALLION
3318372210 Frigidaire Oven Range 6" 1250W Surface Element
4316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5316442300 Frigidaire Oven 2100W Coil Element 8
6316048413 Frigidaire Oven Range Chrome 8" Drip Bow
7SUPT BROIL. ELEMNT
7ASCREW 8 X 18 X 1/2“ HEX WSH HD (2)
8220T017P02 Frigidaire Broil Element
9WCI 221T011P01
