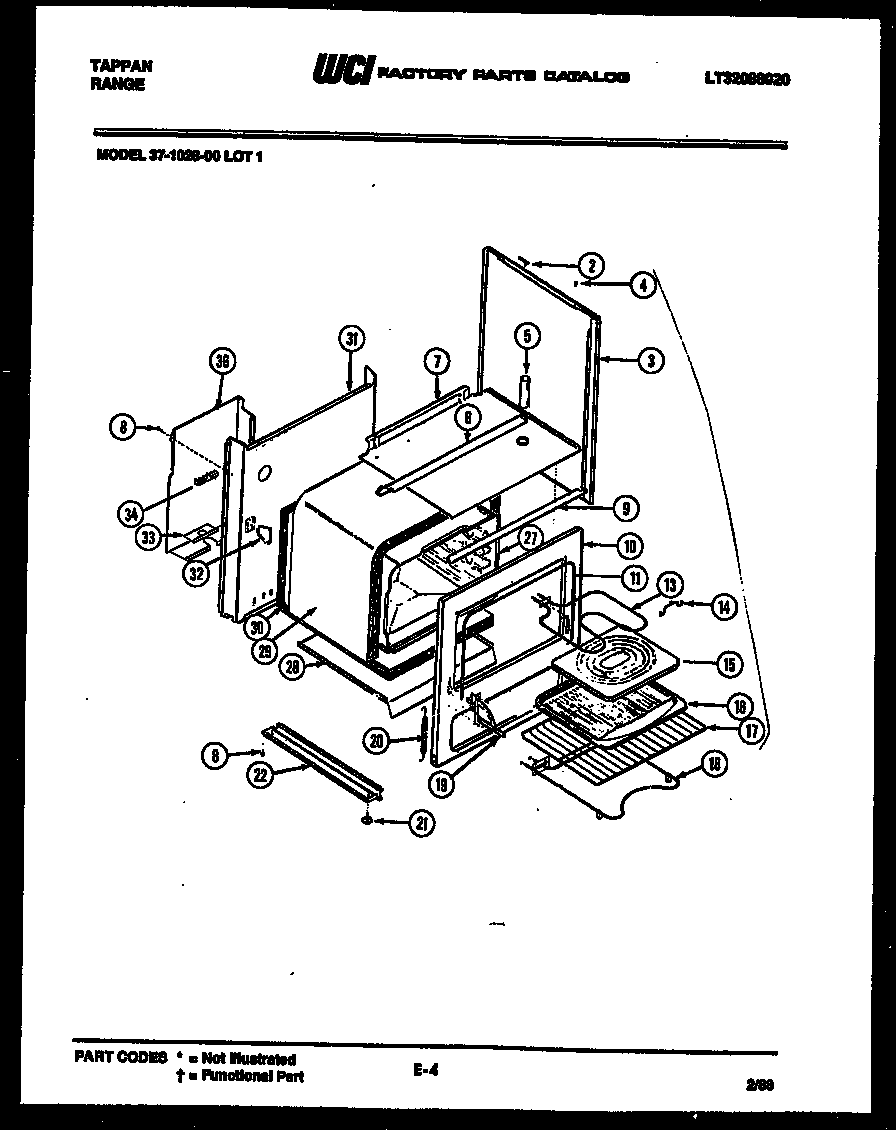

37-1028-00-01 02 – BODY PARTS

Products

Position	Product
2	GROMMET MAIN TOP
3	PANEL-BODYSIDE (WHITE) (2)
4	GROMMET
5	TUBE-VENT
6	WCI 3017034
7	BURNER BOX BOTTOM
9	SUPPORT CONTROL PNL
10	WCI 3017048
11	WCI 3009427
13	WCI 3009293
14	WCI 3009445
15	WCI 3131021
16	BROILER-PAN
17	RACK-OVEN
18	WCI 3017027
19	CAM-DOOR RIGHT HAND
19	318348801 Frigidaire Oven Left Side Door Hinge
20	SPRING (2)
21	WCI 3051080
22	BASE-RAIL (2)
27	OVEN LINER SIDE RH
27	WCI 3017047
27	WCI 3017046
27	WCI 3017045
27	WCI 3051087
27	WCI 3017031
29	WCI 3017029
30	WCI 3017028
31	WCI 3015724
32	SUPPORT-REAR OVN (2)
33	SUPPORT-CONDULT
34	5304409888 Frigidaire Oven Terminal Block with Hardware
36	WCI 3015725
