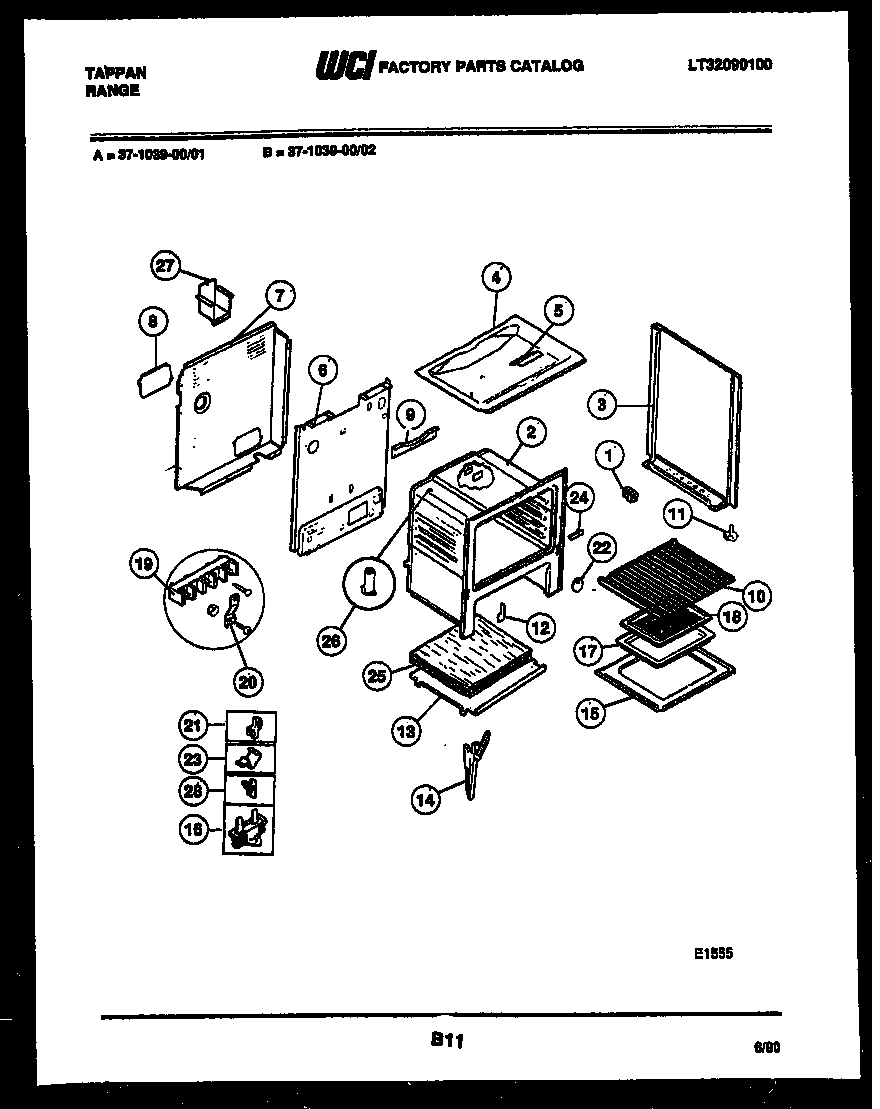

37-1039-00-01 05 – BODY PARTS

Products

Position	Product
*24847	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-WHITE
3	PNL-BODYSIDE LH-WHITE
4	WCI 08067749
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
16	FUSE-THERMO CUTOUT
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051218 Frigidaire Oven Plate
23	WCI 3051367
24	COVER-OVEN FRONT
25	316403803 Frigidaire Insulation
26D	SCREW - CHANNEL MTG (NON-ILLUSTRATED)
26E	WCI 08067783
26A	INSULATION, OVEN WRAPPER
26	WCI 3051344
26B	INSUL - OVEN BACK (NON-ILLUSTRATED)
26C	3131903 Frigidaire Door/Drawer Bumper
27	WCI 3203582
27A	WCI 3051387
27B	BRKT, RANGE CABLE MTG (NON-ILLUSTRATED)
28	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
