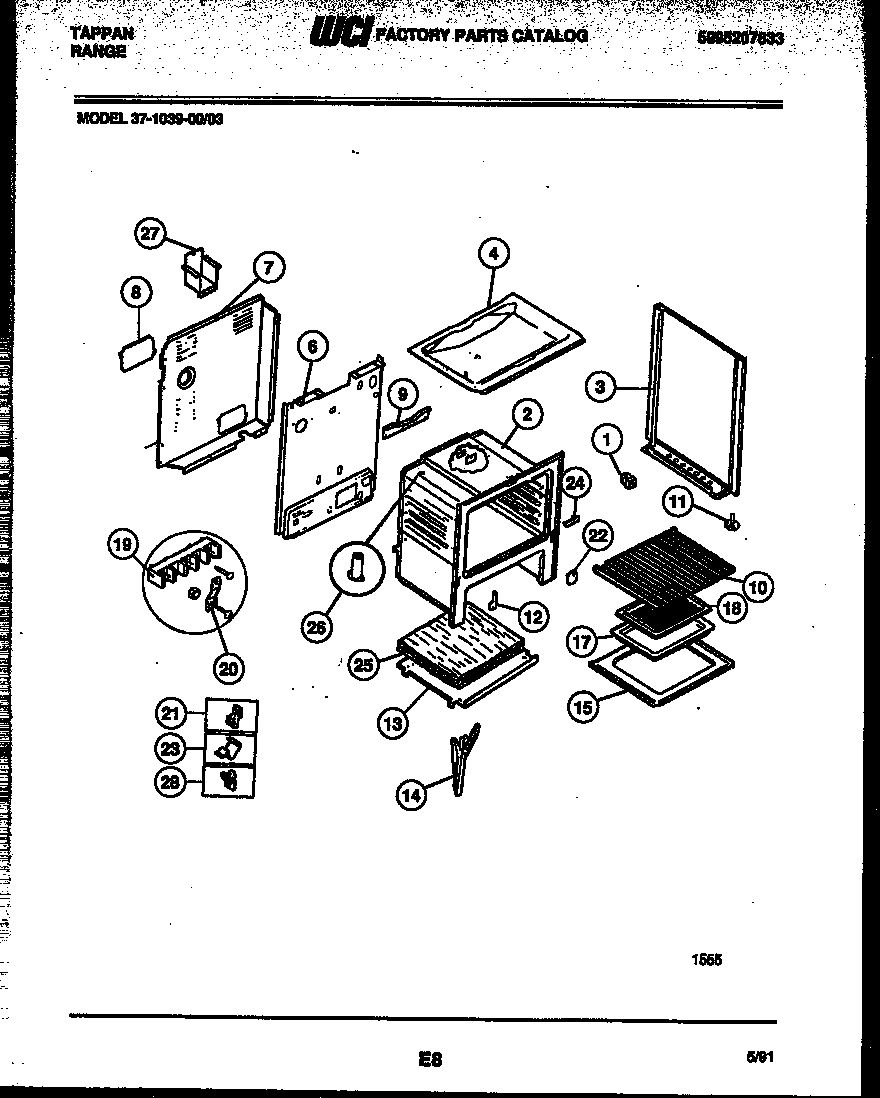

37-1039-00-03 05 – BODY PARTS

Products

PositionProduct
*51668WCI 19100210058
*516683203550 Frigidaire Oven Plug
*51668ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3APNL-B/S-RH-WHITE
3AWCI 5303269543
3PNL-B/S-LH-WHITE
3WCI 5303269545
4WCI 5303271756
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
215303284616 Frigidaire Range Bulb Clip Thermostat
223051218 Frigidaire Oven Plate
23WCI 3051367
24COVER-OVEN FRONT
25316403803 Frigidaire Insulation
26BINSUL – OVEN BACK (NON-ILLUSTRATED)
26DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
26AINSULATION, OVEN WRAPPER
26E316205500 Frigidaire Oven Nut
26WCI 3051344
26C3131903 Frigidaire Door/Drawer Bumper
27BWCI 5303206618
27WCI 3203582
27AWCI 3051387
283051162 Frigidaire Oven Range Front Broiler Drawer Glide
