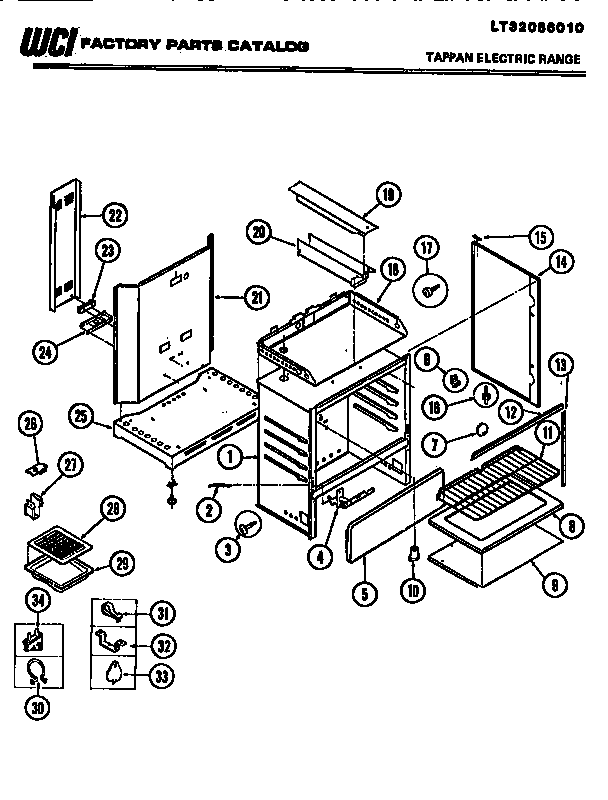

| 2 | SPRING-OVN DR CAM (2) |
| 3 | SCREW-SHOULDER 8A X 3/8`` (4) |
| 4 | CAM-OVEN DOOR L |
| 4 | CAM-OVEN DOOR R |
| 5 | WCI 517T003W35-00 |
| 5A | WCI 517T003W35-23 |
| 6 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 7 | WCI 557T021P12 |
| 8 | WCI 058T035F02-89 |
| 9 | WCI 655T119F03-18 |
| 10 | WCI 750T208W06 |
| 11 | RACK, OVEN (2) |
| 12 | SEAL-OVEN DOOR (TOP BTM.) (2) |
| 13 | SEAL-OVEN DOOR (SIDE) |
| 14A | PNL, BODY, ALMD (2) |
| 14 | PNL, BODY, WHITE (2) |
| 15 | GLIDE, MAIN TOP (2) |
| 16 | SCREW, GUIDE (2) |
| 17 | WCI 636T083P01 |
| 18 | BURNER BOX (CHAR. GRAY PORC W/ FR.) |
| 19 | CHANNEL, CVR |
| 20 | CHANNEL, WIRE |
| 21 | WCI 021T020F02 |
| 21A | SCREW 8 X 18 X 1/2`` HEX WSH HD (2) |
| 22 | WCI 655T129F01 |
| 22A | SCREW-EXTRUSION MTG (8A X 1/2`` PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED) |
| 23D | WCI 711T048P01 |
| 23A | SCREW TERM (2) (NON-ILLUSTRATED) |
| 23 | 5304409888 Frigidaire Oven Terminal Block with Hardware |
| 23E | SCREW BRND STRAP |
| 23B | (NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED) |
| 24 | WCI 008T230W03-18 |
| 25 | WCI 036T050W01-18 |
| 26 | FASTENER-8AJ (2) |
| 27 | FSTNR CABLE CLAMP |
| 28 | WCI 319T011F02-89 |
| 29 | PAN-BROILER (CHAR. GRAY W/ F) |
| 34C | INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62`` |
| 34H | 5303321319 Frigidaire Refrigerator White Touch Up Paint |
| 34I | WCI 508T026P02 |
| 34D | TRIM-PNL-VERTICAL (2) |
| 34J | WCI 560T691P131 |
| 34B | INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM |
| 34A | INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED) |
| 34E | WCI 740T365P02 |
| 34F | WCI 740T365P01 |
| 34G | CORD, SUPPLY (NON-ILLUSTRATED) |
