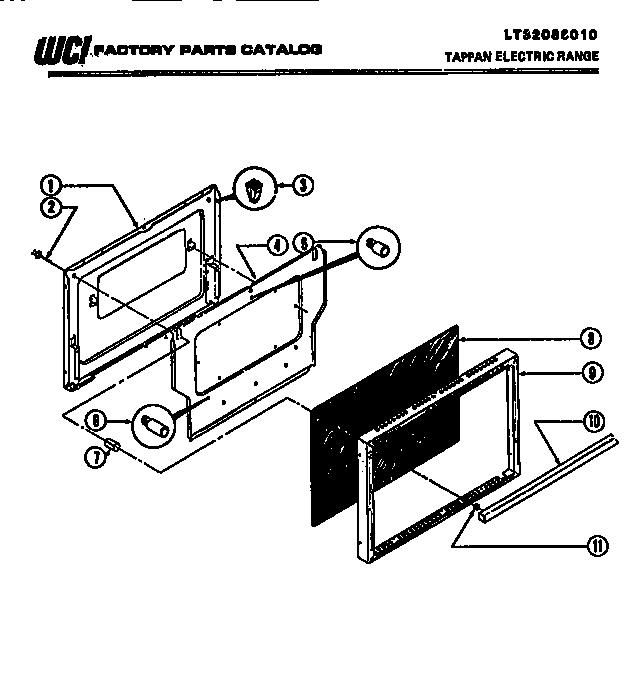

37-1042-23-04 04 – DOOR

Products

Position	Product
1	WCI 381T086W01-87
1A	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
2	SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2-12) (2)
3	FASTNR-NYLN SPACR 3/32“ (5)
4	WCI 655T303F04
4A	INSUL-WOOL 2 X 16 1/4 X 28“
5	FASTNR-NYLN SPACER 9/16“
6	FASTNR-NYLN SPACER 11/16“ (3)
7	SPCR, TUBE HNDL (2)
8	GLASS, FULL BLOCK
9B	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
9	TRIM, DOOR
9C	5303300265 Frigidaire Oven Screw
10	WCI 296T026P05
11	SPACER-OVN DR HANDLE (2)
