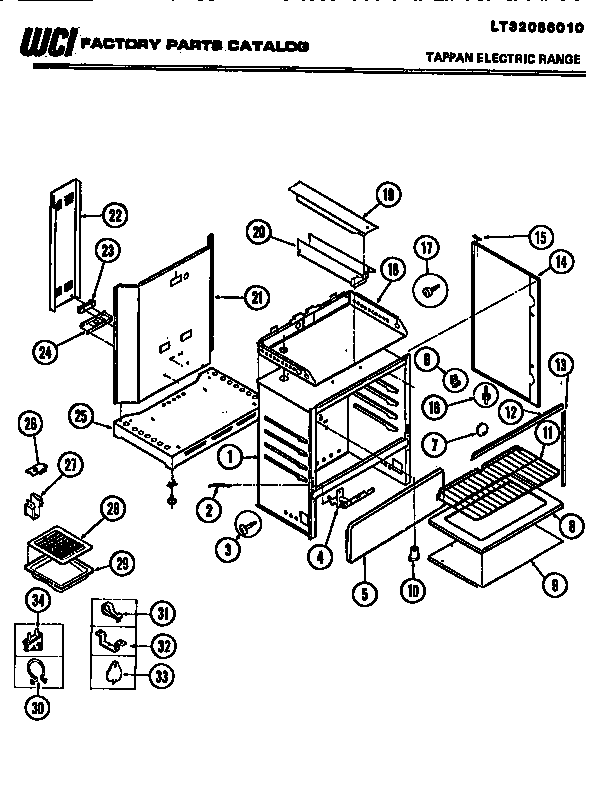

37-1042-66-04 02 – BODY

37-1042-66-04 02 – BODY

Written by

in

37-1042-66-04 02 – BODY

Products

PositionProduct
2SPRING-OVN DR CAM (2)
3SCREW-SHOULDER 8A X 3/8“ (4)
4ACAM, OVN DR, RH
4ACAM, OVN DR, LH
5AWCI 517T003W35-23
5WCI 517T003W35-00
65303284616 Frigidaire Range Bulb Clip Thermostat
7WCI 557T021P12
8WCI 058T035F02-87
9WCI 655T119F03-18
10WCI 750T214W10-08
11RACK, OVEN (2)
14PNL, BODY, WHITE (2)
14APNL, BODY, ALMD (2)
15GLIDE, MAIN TOP (2)
16SCREW, GUIDE (2)
17WCI 636T083P01
18BURNER BOX (BLUE GRAY)
19CHANNEL, CVR
20CHANNEL, WIRE
21WCI 021T020F02
21ASCREW 8 X 18 X 1/2“ HEX WSH HD (2)
22ASCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
22WCI 655T129F01
23ESCREW BRND STRAP
23CNUT-HEX BRASS (6) (NON-ILLUSTRATED)
23DWCI 711T048P01
235304409888 Frigidaire Oven Terminal Block with Hardware
23ASCREW TERM (2) (NON-ILLUSTRATED)
24WCI 008T230W03-18
25WCI 036T050W01-18
27FSTNR CABLE CLAMP
28INSERT-BROILR PAN LOT 1
30FASTENER-PURSE LOCK
31CLAMP, CABLE (2)
34H5303321319 Frigidaire Refrigerator White Touch Up Paint
34EWCI 740T365P02
34CINSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62“
34IWCI 508T026P02
34FWCI 740T365P01
34DTRIM-PNL-VERTICAL (2)
34AINSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED)
34JWCI 560T691P131
34GCORD, SUPPLY (NON-ILLUSTRATED)
34BINSUL. (2 1/2 X 21 X 24) OVEN BOTTOM
