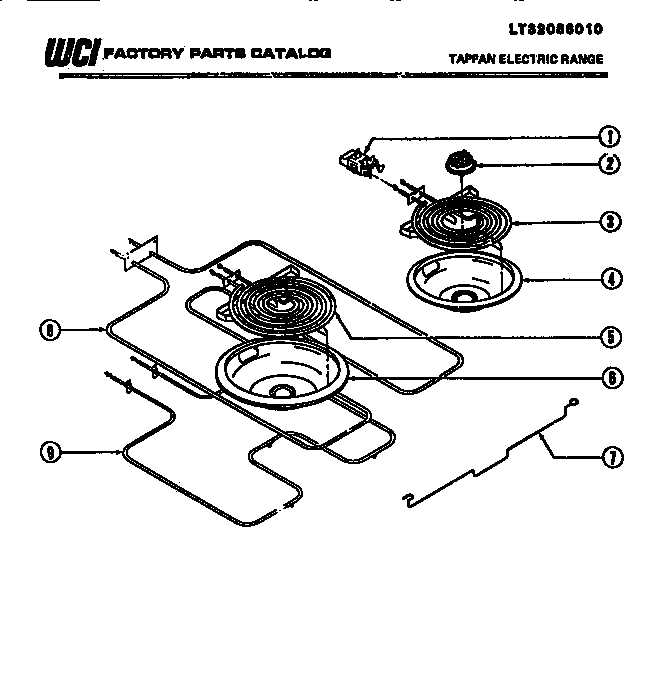

37-1042-66-04 06 – BURNERS, DRIP PANS, ELEMENTS

Products

Position	Product
1A	SCREW (4) (NON-ILLUSTRATED)
1	5303935058 Frigidaire Oven Burner Receptacle Kit
2	MEDALLION
3	318372210 Frigidaire Oven Range 6" 1250W Surface Element
4	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
5	316442300 Frigidaire Oven 2100W Coil Element 8
6	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
7	SUPT BROIL. ELEMNT
8	220T017P02 Frigidaire Broil Element
9A	SCREW 8 X 18 X 1/2`` HEX WSH HD (2)
9	WCI 221T017P01
9B	WIRE HARN. SW.
9C	KIT BAKE & BROIL EL. WIRE REPAIR
