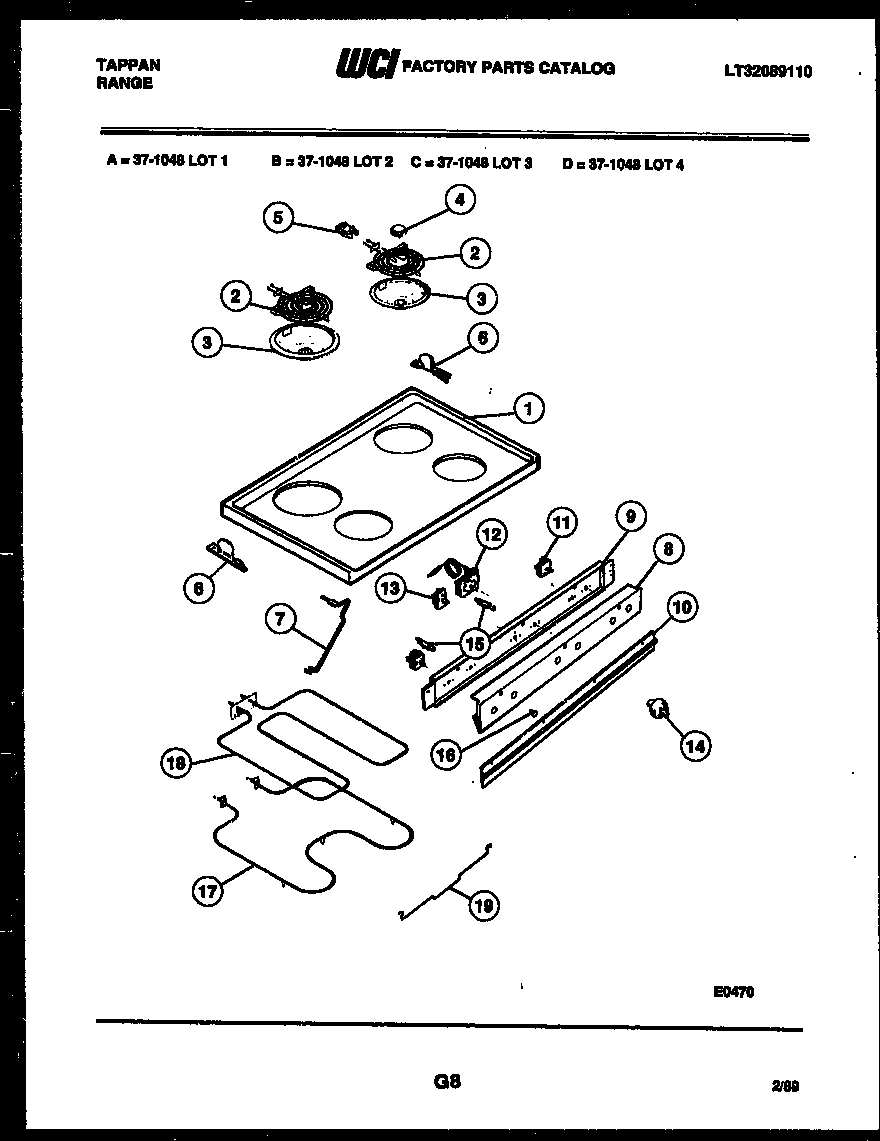

37-1048-00-02 02 – COOKTOP, BROILER AND CONTROL PARTS

Products

Position	Product
*10558	RETAINER-LENS
1	WCI 3051284
2	318372210 Frigidaire Oven Range 6" 1250W Surface Element
2	316442300 Frigidaire Oven 2100W Coil Element 8
3	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4	WCI 445T006P01
5	5303935058 Frigidaire Oven Burner Receptacle Kit
6	BRKT MAIN TOP HNG RH
6	BRKT MAIN TOP HNG LH
7	ROD-MAIN TOP SUPT.
8	WCI 3017106
9	WCI 3051454
10	WCI 3051145
11	SWITCH S/U (4)
13	WCI 3051317
13	WCI 3016812
14A	WCI 3016753
14B	WCI 3016754
14	KNOBS (4)
15	INDICATOR LIGHT (4)
15A	INDICATOR-LITE OVN
16	LENS-IND LIGHT (2)
17	ELEMENT, OVEN BAKE
18	5303051140 Frigidaire Broil Element
19	316203400 Frigidaire Oven Support
