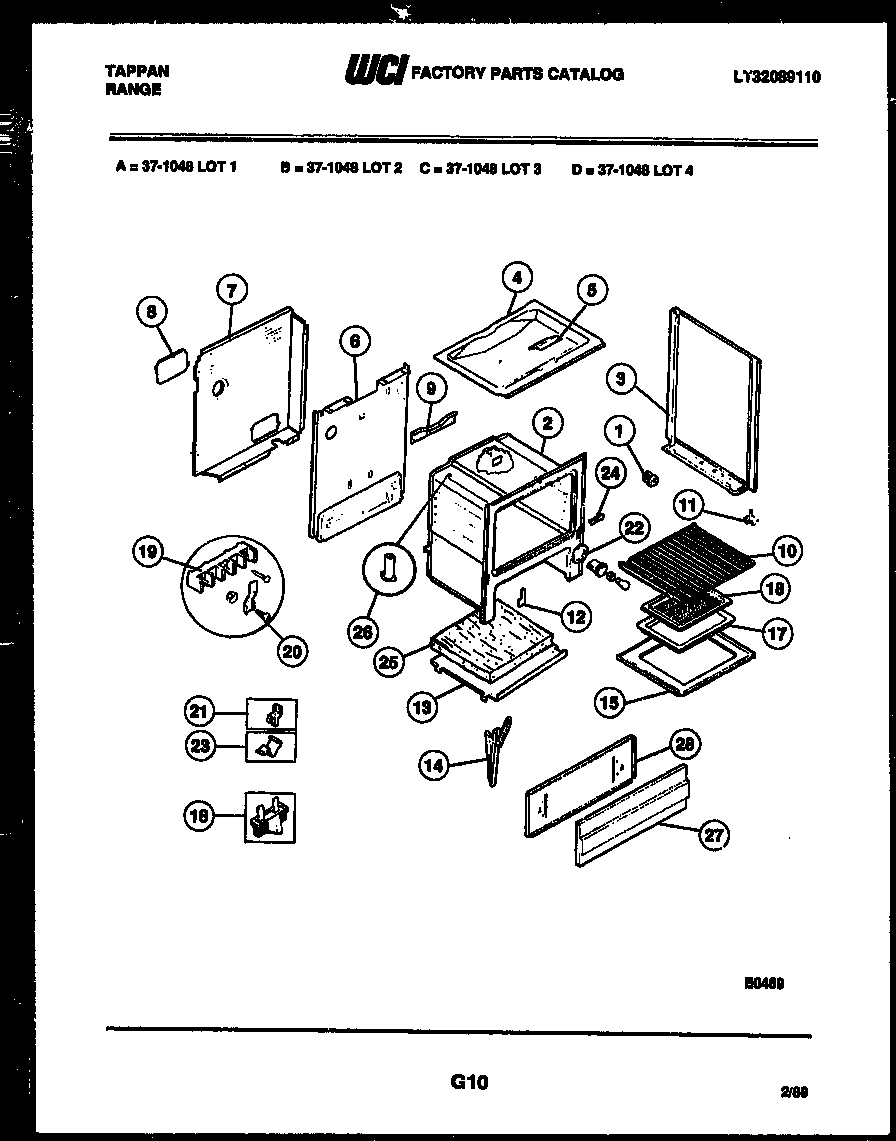

37-1048-23-01 03 – BODY PARTS

Products

Position	Product
*10562	WCI 3051387
1	WCI 665T188P02
3	PNL. B/S (RH ALMOND)
3	PNL. B/S (LH ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	WCI 3051398
14	CHANL-DR HNG (2)
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	5303284616 Frigidaire Range Bulb Clip Thermostat
22	3051218 Frigidaire Oven Plate
23	WCI 3051367
24	COVER-FRONT MAIN
25	316403803 Frigidaire Insulation
26A	WCI 3131201
26C	3131903 Frigidaire Door/Drawer Bumper
26E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
26D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
26	WCI 3051344
26B	INSULATION-BACK (NON-ILLUSTRATED)
27	PNL - DRAWER (ALMD)
28	SHIELD-PNL
