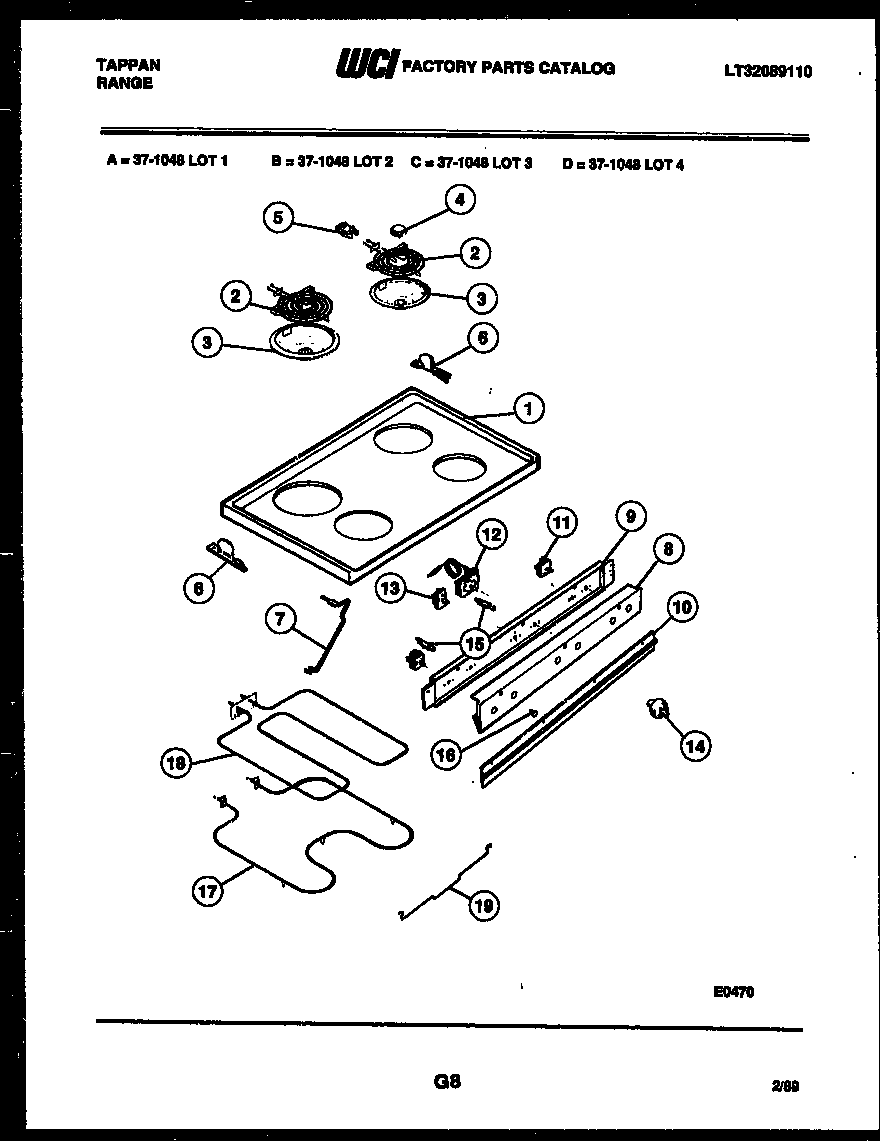

37-1048-23-04 02 – COOKTOP, BROILER AND CONTROL PARTS

37-1048-23-04 02 – COOKTOP, BROILER AND CONTROL PARTS

Written by

in

37-1048-23-04 02 – COOKTOP, BROILER AND CONTROL PARTS

Products

PositionProduct
*10558RETAINER-LENS
1MAIN TOP, ALMOND
2318372210 Frigidaire Oven Range 6" 1250W Surface Element
2316442300 Frigidaire Oven 2100W Coil Element 8
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 445T006P01
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRKT MAIN TOP HNG RH
6BRKT MAIN TOP HNG LH
7ROD-MAIN TOP SUPT.
8WCI 3017106
9WCI 3051454
10WCI 3051145
11SWITCH S/U (4)
13WCI 3051317
13WCI 3016812
14AWCI 3016753
14BWCI 3016754
14KNOBS (4)
15INDICATOR LIGHT (4)
15AINDICATOR-LITE OVN
16LENS-IND LIGHT (2)
17ELEMENT, OVEN BAKE
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
