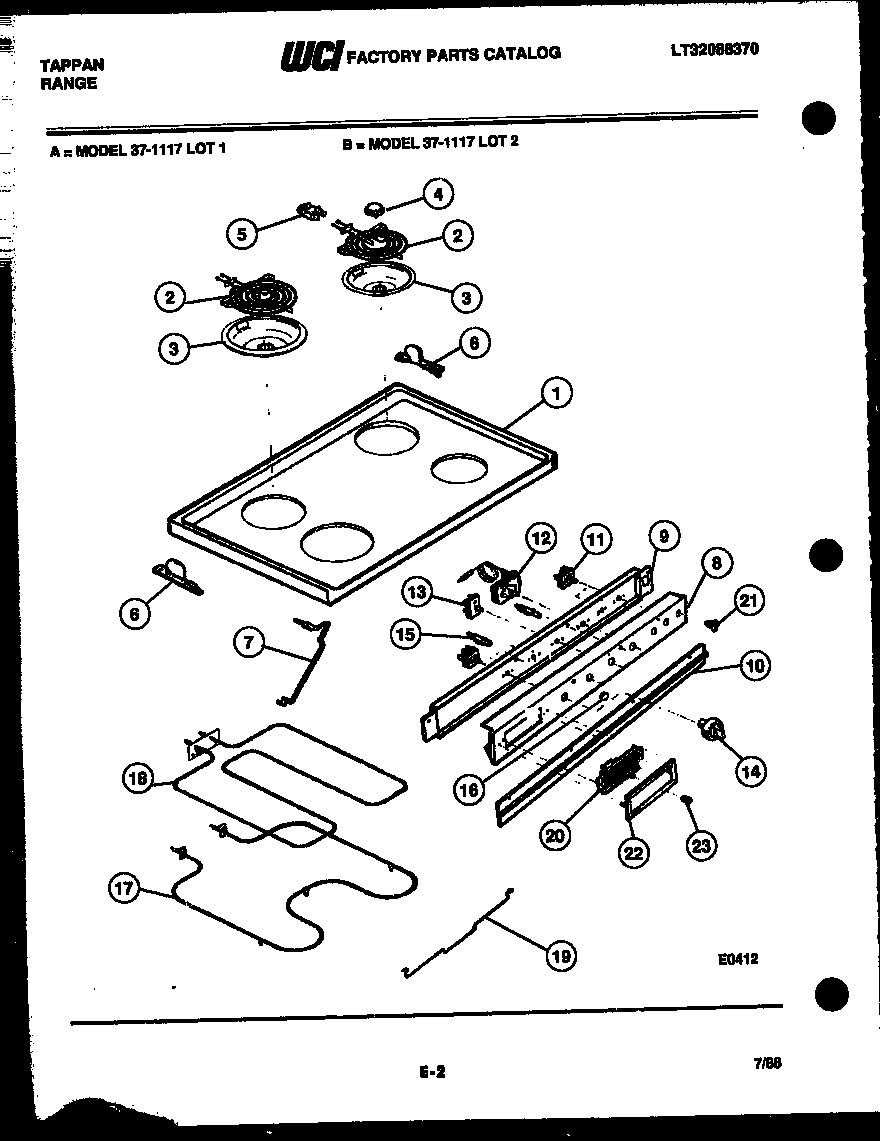

37-1117-66-02 02 – COOKTOP, BROILER AND BACKGUARD

37-1117-66-02 02 – COOKTOP, BROILER AND BACKGUARD

Written by

in

37-1117-66-02 02 – COOKTOP, BROILER AND BACKGUARD

Products

PositionProduct
1MAIN TOP (WHEAT)
2316442300 Frigidaire Oven 2100W Coil Element 8
2AELEMENT-TOP SMALL (3)
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 445T006P01
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRKT MAIN TOP HNG LH
6ABRKT MAIN TOP HNG RH
7WCI 618T03P05
8WCI 3051208
9PLATE-INST MOUNTING
10WCI 3051145
11SWITCH S/U (4)
12THERMO OVN-LOWER
13WCI 3016812
14WCI 3051173
14AKNOB-THERMOS.
14BKNOB-SEL. SW.
15AINDICATOR-LITE OVN
15INDICATOR LIGHT (4)
16LENS-IND LIGHT (2)
17ELEMENT, OVEN BAKE
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
19ARETAINER-LENS
20CLOCK
21SWITCH-LIGHT (2)
22WCI 3051114
23WCI 358T201P01
