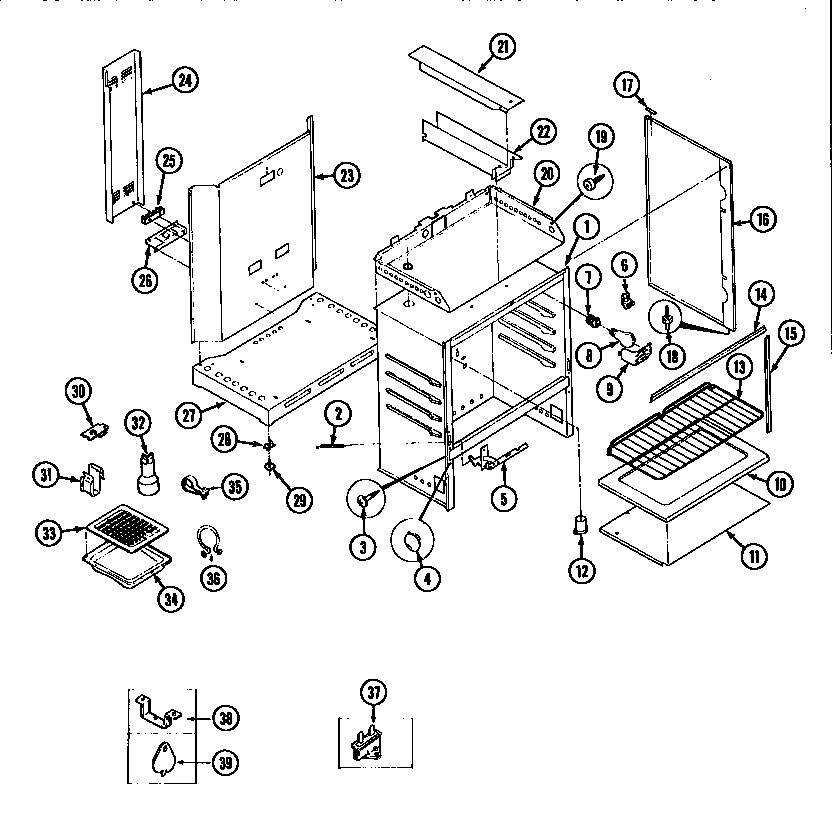

37-1272-23-02 08 – BODY PARTS

Products

Position	Product
*48347	INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM
*48348	WCI 740T365P02
*48348	INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62“
*48350	WCI 508T026P02
*48349	WCI 740T365P01
*48348	TRIM-PNL-VERTICAL (2)
*48352	CORD, SUPPLY (NON-ILLUSTRATED)
*48346	INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED)
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8“ (4)
5	CAM-OVEN DOOR R
5	CAM-OVEN DOOR L
6	5303284616 Frigidaire Range Bulb Clip Thermostat
7	WCI 662T012P03
8	316538904 Frigidaire Oven Lamp Light
9	WCI 655T327F03
10	WCI 058T035F02-89
11	WCI 655T119F03-18
12	WCI 750T208W06
13	RACK, OVEN (2)
14	SEAL-OVEN DOOR (TOP BTM.) (2)
15	SEAL, DOOR SIDES (2)
16	PNL, BODY, ALMD (2)
17	GLIDE, MAIN TOP (2)
18	SCREW, GUIDE (2)
19	WCI 636T083P01
20	BURNER BOX (CHAR. GRAY PORC W/ FR.)
21	CHANNEL, CVR
22A	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
22	CHANNEL, WIRE
23A	SCREW 8 X 18 X 1/2“ HEX WSH HD (2)
23	WCI 021T020F02
24	WCI 655T129F01
25E	SCREW BRND STRAP
25	5304409888 Frigidaire Oven Terminal Block with Hardware
25B	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
25D	WCI 711T048P01
25A	SCREW TERM (2) (NON-ILLUSTRATED)
26	WCI 008T230W03-18
27	WCI 036T050W01-18
28	FASTNR-LEVEL LEG (4)
29	WCI 636M004P01
31	FSTNR CABLE CLAMP
32	WCI 711T047P03
33	INSERT-BROILER PAN (CHAR. GRAY W/ F)
34	PAN-BROILER (CHAR. GRAY W/ F)
