37-1272-23-03 07 – DOOR PARTS

37-1272-23-03 07 – DOOR PARTS

Written by

in

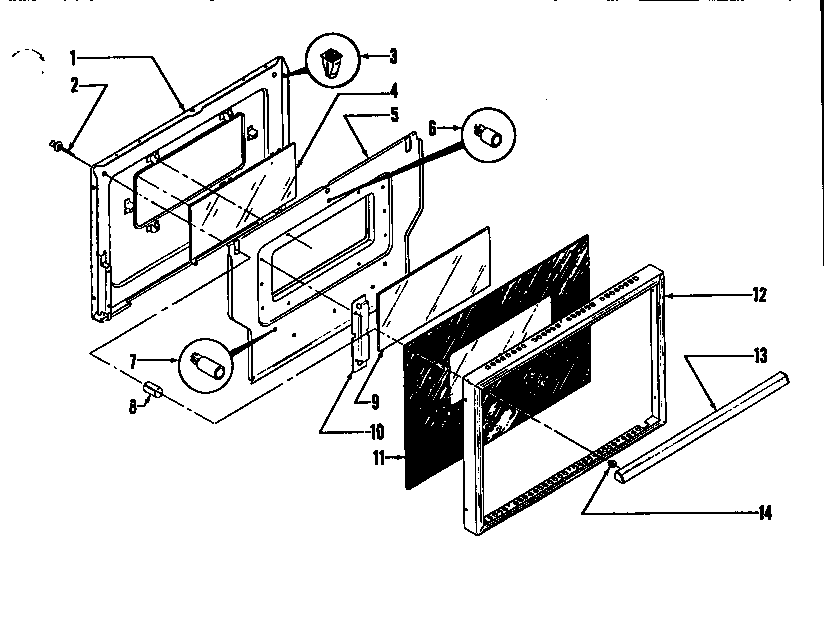

37-1272-23-03 07 – DOOR PARTS

Products

Position	Product
1	LINER (CHAR GRAY PORC W/ FLECK)
2	SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2-12) (2)
3	FASTNR-NYLON PUSH-IN SPACR (5)
4	GLASS-INNER
5	SHIELD, WOOL
6	FASTNR-NYLN SPACER 9/16“
6A	INSUL-WOOL 2 X 16 1/4 X 28“
7	FASTNR-NYLN SPACER 11/16“ (3)
8	SPACER-OVEN DOOR HANDLE MTG
9	GLASS, MIDDLE
10A	SCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
10	WCI 072T684F01
11	GLASS, OUTER
12	TRIM, DOOR
12A	5303300265 Frigidaire Oven Screw
13	WCI 296T026P05
14	SPACER-OVN DR HANDLE (2)
