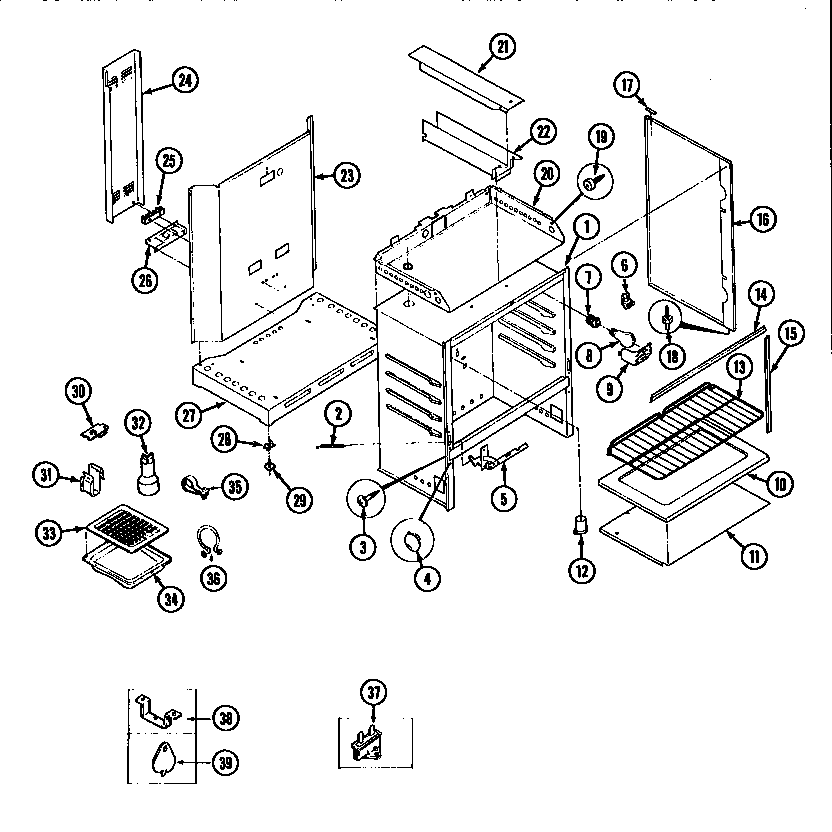

37-1272-23-03 08 – BODY PARTS

Products

Position	Product
*48348	TRIM-PNL-VERTICAL (2)
*48348	WCI 740T365P02
*48349	WCI 740T365P01
*48347	INSUL. (2 1/2 X 21 X 24) OVEN BOTTOM
*48346	INSUL. (2 1/2 X 18 X 24) OVEN BOTTOM (NON-ILLUSTRATED)
*48352	CORD, SUPPLY (NON-ILLUSTRATED)
*48348	INSUL-WOOL-TOP & SIDES 2 1/2 X 19 X 62“
*48350	WCI 508T026P02
2	SPRING-OVN DR CAM (2)
3	SCREW-SHOULDER 8A X 3/8“ (4)
5	CAM-OVEN DOOR L
5	CAM-OVEN DOOR R
6	5303284616 Frigidaire Range Bulb Clip Thermostat
7	WCI 662T012P03
8	316538904 Frigidaire Oven Lamp Light
9	WCI 655T327F03
10	WCI 058T035F02-89
11	WCI 655T119F03-18
12	WCI 750T208W06
13	RACK, OVEN (2)
14	SEAL-DR TOP & BTM
15	SEAL, DOOR SIDES (2)
16	PNL, BODY, ALMD (2)
17	GLIDE, MAIN TOP (2)
18	SCREW, GUIDE (2)
19	WCI 636T083P01
20	BURNER BOX (CHAR. GRAY PORC W/ FR.)
21	CHANNEL, CVR
22	CHANNEL, WIRE
22A	SCREW-EXTRUSION MTG (8A X 1/2“ PH TR)(B/I TRIM KIT) (10)(NOT ILLUSTRATED)
23	WCI 021T020F02
23A	SCREW 8 X 18 X 1/2“ HEX WSH HD (2)
24	WCI 655T129F01
25	5304409888 Frigidaire Oven Terminal Block with Hardware
25D	WCI 711T048P01
25B	(NUT BRASS) WIRES TO TERM. BLK. (6) (NON-ILLUSTRATED)
25E	SCREW BRND STRAP
25A	SCREW TERM (2) (NON-ILLUSTRATED)
26	WCI 008T230W03-18
27	WCI 036T050W01-18
28	FASTNR-LEVEL LEG (4)
29	WCI 636M004P01
31	FSTNR CABLE CLAMP
32	WCI 711T047P03
33	INSERT-BROILER PAN (CHAR. GRAY W/ F)
34	PAN-BROILER (CHAR. GRAY W/ F)
