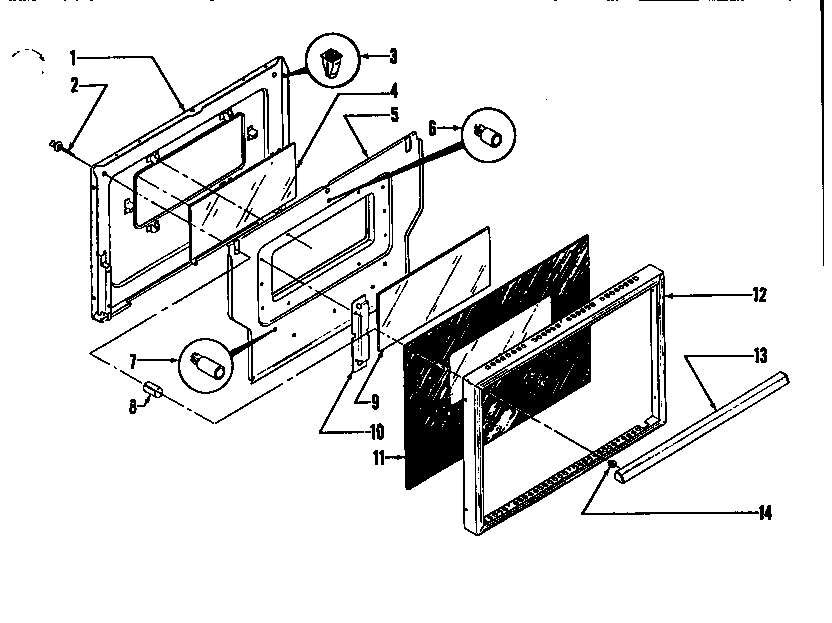

37-1272-23-04 07 – DOOR PARTS

37-1272-23-04 07 – DOOR PARTS

Written by

in

37-1272-23-04 07 – DOOR PARTS

Products

PositionProduct
1LINER-DOOR LOT 1
2SCREW-HNDL MTG 10-24 X 2 3/4 FL WSH HD (LOT 2-12) (2)
3FASTNR-NYLN SPACR 3/32“ (5)
4GLASS-INNER
5SHIELD, WOOL
6AINSUL-WOOL 2 X 16 1/4 X 28“
6FASTNR-NYLN SPACER 9/16“
7FASTNR-NYLN SPACER 11/16“ (3)
8SPCR, TUBE HNDL (2)
9GLASS, MIDDLE
10ASCREW-DR ASSY 8A X 3/8“ PH TR HD (10)
10WCI 072T684F01
11GLASS, OUTER
12BSCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
12TRIM, DOOR
12C5303300265 Frigidaire Oven Screw
13WCI 296T026P05
14SPACER-OVN DR HANDLE (2)
