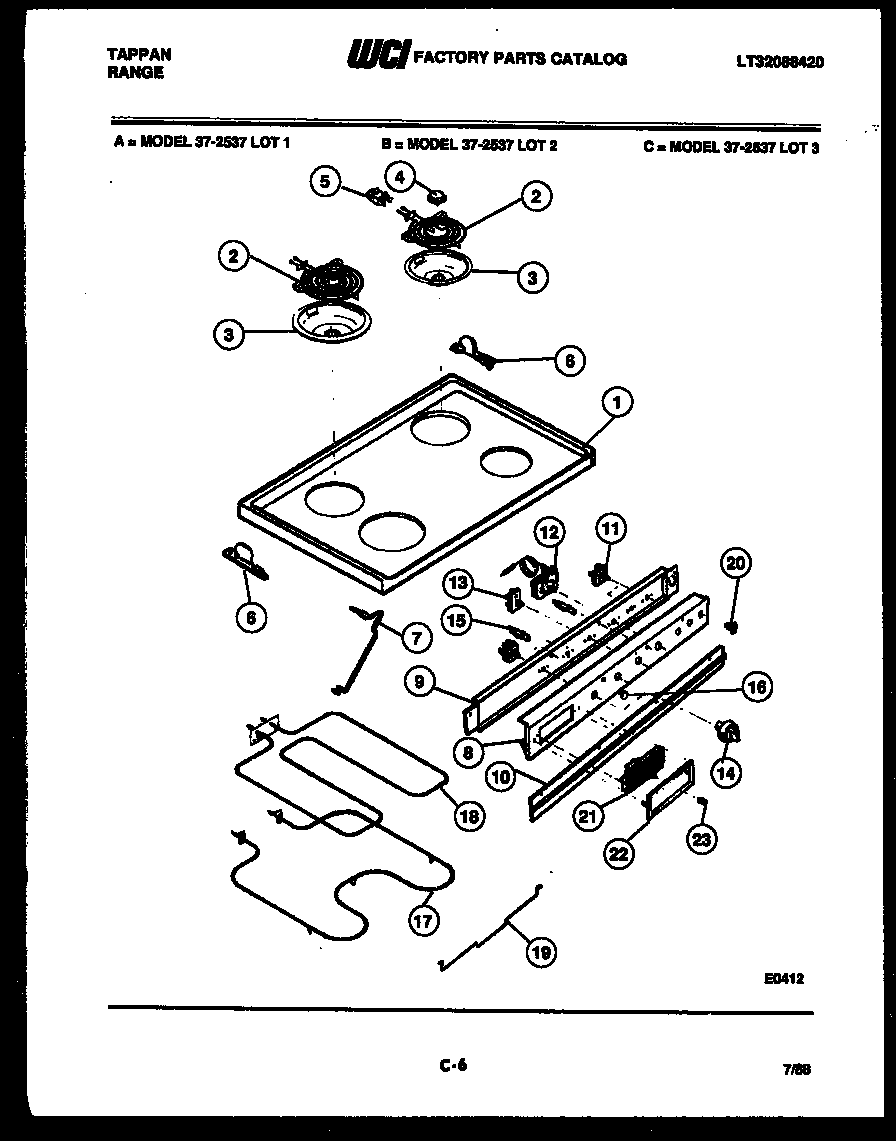

37-2537-23-01 02 – COOKTOP, BROILER AND CONTROL PARTS

37-2537-23-01 02 – COOKTOP, BROILER AND CONTROL PARTS

Written by

in

37-2537-23-01 02 – COOKTOP, BROILER AND CONTROL PARTS

Products

PositionProduct
1WCI 3251285
2318372211 Frigidaire Oven 6" Electric Range Burner Kit
2316442301 Frigidaire Oven 8 Coil Element 2600W
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 445T006P01
55303935058 Frigidaire Oven Burner Receptacle Kit
6BRKT-MAIN TOP HNG LH
6BRKT-MAIN TOP HNG RH
7ROD – MAINTOP SUPT.
8WCI 3016750
9PLATE-INST MOUNTING
10WCI 3051145
11SWITCH S/U (4)
12THERMO OVN-LOWER
13WCI 3051317
14WCI 3016754
14AWCI 3016753
14KNOBS (4)
15AINDICATOR LIGHT-250V (2)
15INDICATOR LIGHT-125V (3)
16LENS-IND LIGHT (2)
17ELEMENT-OVEN BAKE
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
19ARETAINER-LENS
20SWITCH-LIGHT (2)
21CLOCK
22WCI 3051114
23WCI 358T201P01
