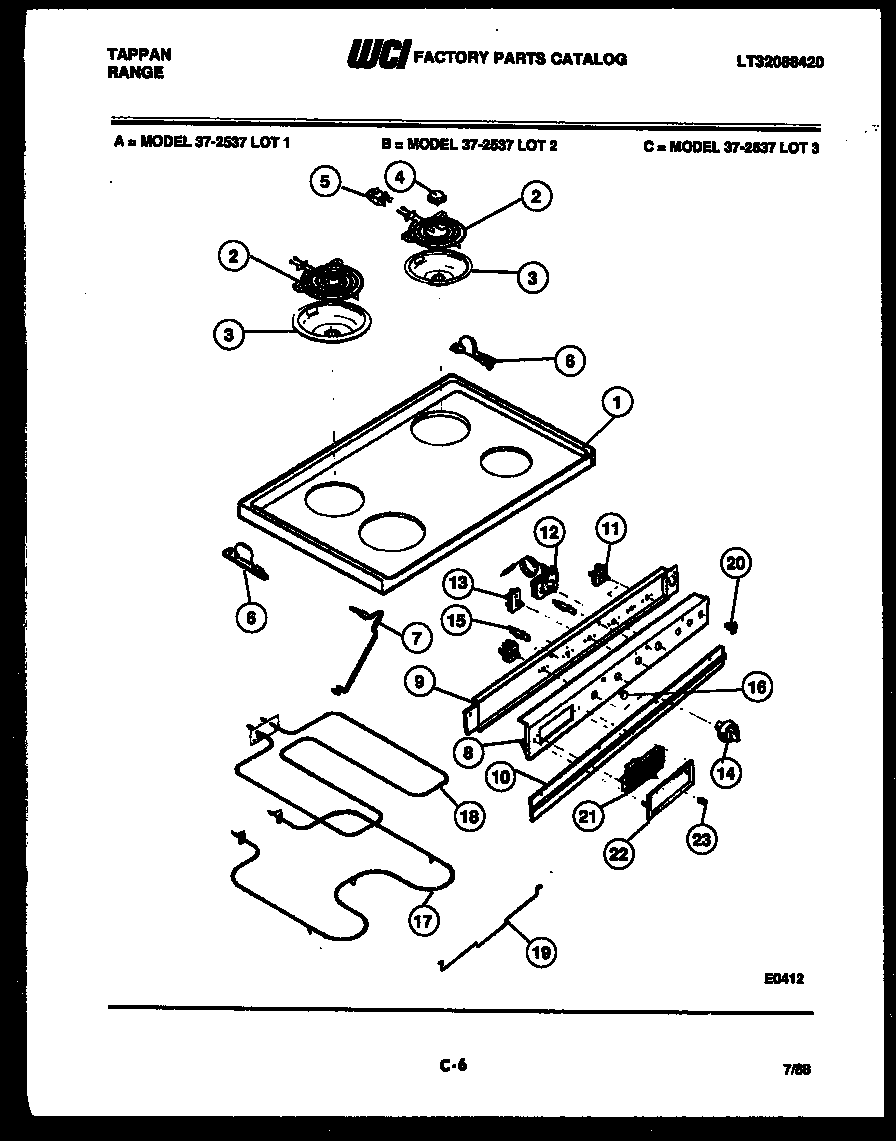

37-2537-23-02 02 – COOKTOP, BROILER AND CONTROL PARTS

Products

Position	Product
1	WCI 3251285
2	318372211 Frigidaire Oven 6" Electric Range Burner Kit
2	316442301 Frigidaire Oven 8 Coil Element 2600W
3	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3	316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4	WCI 445T006P01
5	5303935058 Frigidaire Oven Burner Receptacle Kit
6	BRKT-MAIN TOP HNG LH
6	BRKT-MAIN TOP HNG RH
7	ROD - MAINTOP SUPT.
8	WCI 3016750
9	PLATE-INST MOUNTING
10	WCI 3051145
11	SWITCH S/U (4)
12	THERMO OVN-LOWER
13	WCI 3051317
14	WCI 3016754
14A	WCI 3016753
14	KNOBS (4)
15A	INDICATOR LIGHT-250V (2)
15	INDICATOR LIGHT-125V (3)
16	LENS-IND LIGHT (2)
17	ELEMENT-OVEN BAKE
18	5303051140 Frigidaire Broil Element
19	316203400 Frigidaire Oven Support
19A	RETAINER-LENS
20	SWITCH-LIGHT (2)
21	CLOCK
22	WCI 3051114
23	WCI 358T201P01
