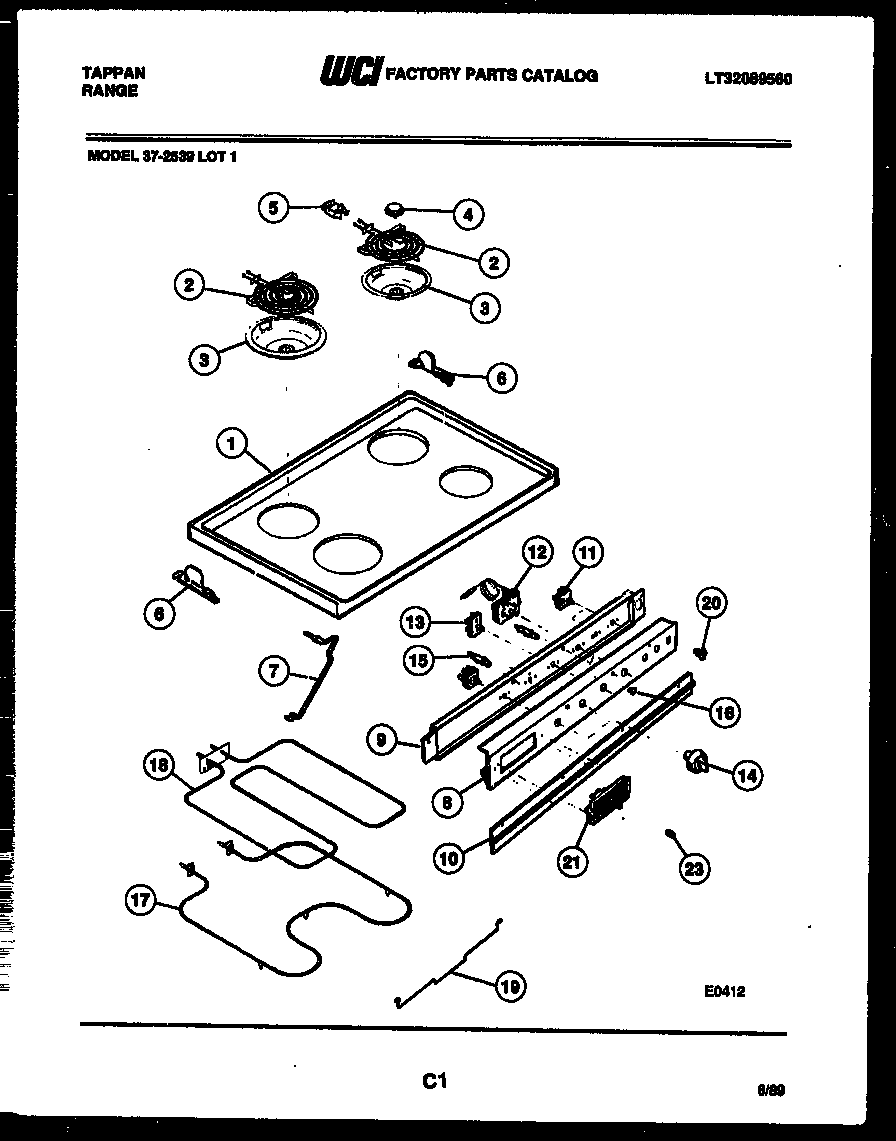

37-2539-00-01 02 – COOKTOP AND BROILER PARTS

37-2539-00-01 02 – COOKTOP AND BROILER PARTS

Written by

in

37-2539-00-01 02 – COOKTOP AND BROILER PARTS

Products

PositionProduct
1WCI 3013512
2A318372211 Frigidaire Oven 6" Electric Range Burner Kit
2316442301 Frigidaire Oven 8 Coil Element 2600W
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4MEDALLION
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRKT MAIN TOP HNG RH
6BRKT MAIN TOP HNG LH
7ROD – MAINTOP SUPT.
8WCI 3205002
9WCI 3205003
10WCI 3204623
11WCI 08010418
12THERMO OVN-LOWR
13WCI 3016812
14BKNOB – SW SELECTOR
14AKNOB – THERMOSTAT
14WCI 3204681
15LIGHT – IND 125 V (2)
15AINDICATOR LIGHT-250V (2)
16WCI 08037703
17316075103 Frigidaire Oven Bake Element
185303051140 Frigidaire Broil Element
19ARETAINER-LENS
19316203400 Frigidaire Oven Support
205308015487 Frigidaire Switch-Oven Light
21CLOCK
23KNOB-CLOCK
