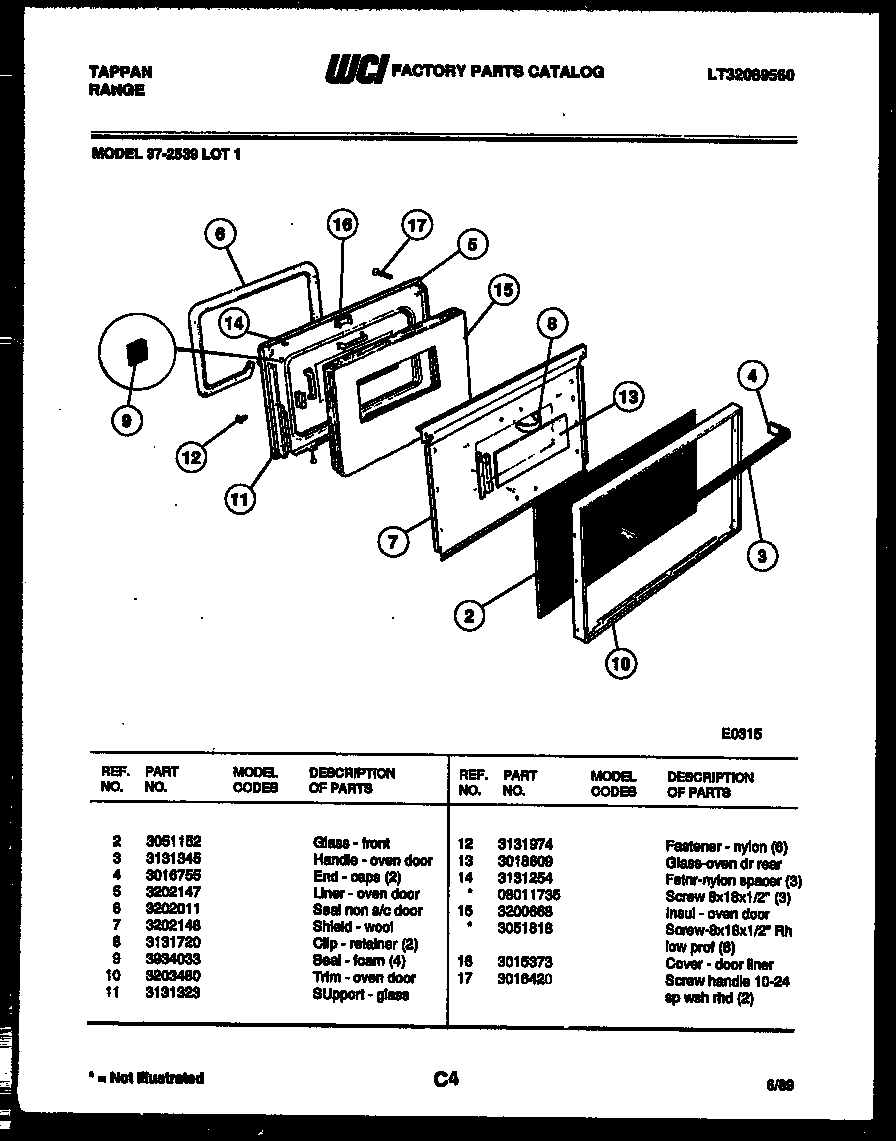

37-2539-00-01 04 – DOOR PARTS

Products

Position	Product
2	GLASS-OVEN DOOR, BLACK, OUTER
3	HANDLE
4	316137003 Frigidaire Range / Cooktop End Cap
5	LINER
6	5303202011 Frigidaire Door Seal
7	WCI 3202148
8	CLIP-RETAINING
9	SEAL, FOAM (4)
10	WCI 3203480
11	SUPPORT, GLASS
12	FSTNR. SPACER (6)
13	GLASS-OV DR (REAR)
14A	WCI 08011735
14	CLIP
15	INSULATION-OVEN DOOR
15A	5303300265 Frigidaire Oven Screw
16	WCI 3015373
17	SCREW – HANDLE (2)
