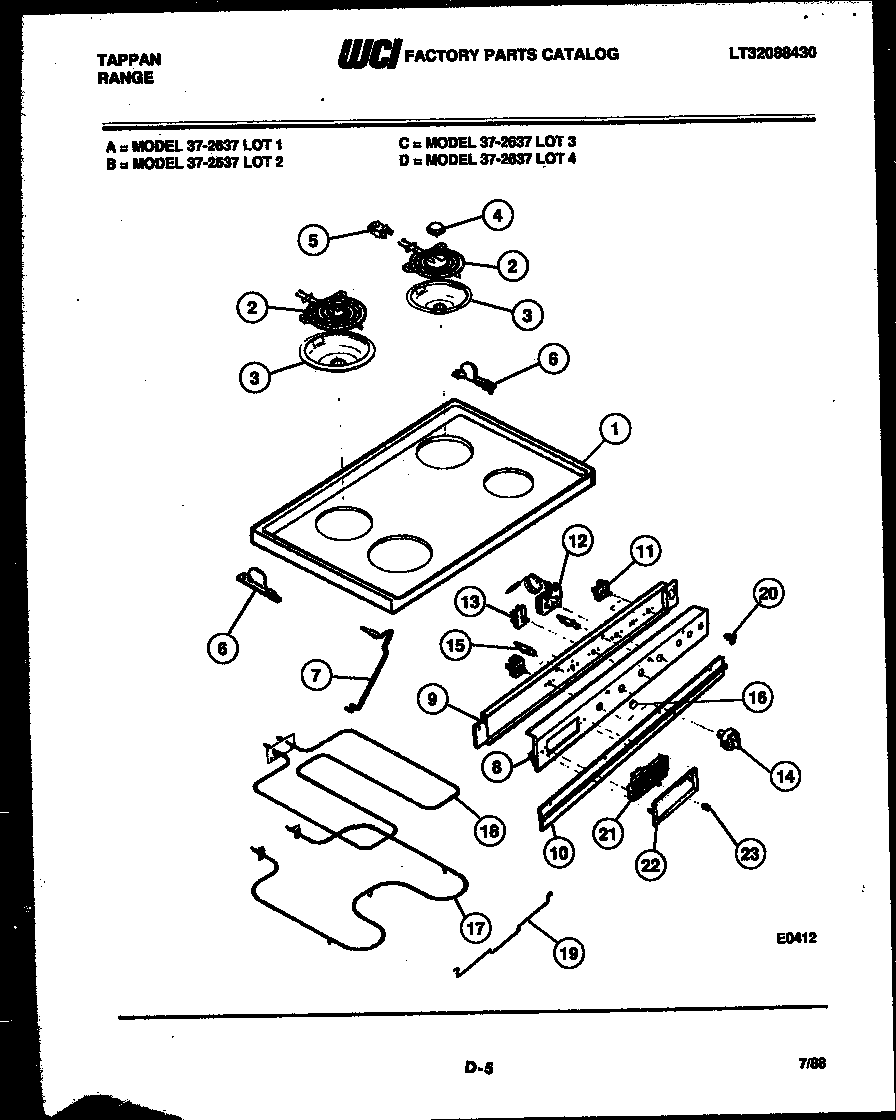

37-2637-00-01 02 – COOKTOP, BROILER AND BACKGUARD

37-2637-00-01 02 – COOKTOP, BROILER AND BACKGUARD

Written by

in

37-2637-00-01 02 – COOKTOP, BROILER AND BACKGUARD

Products

PositionProduct
1MAIN TOP (CHROME)
2A318372211 Frigidaire Oven 6" Electric Range Burner Kit
2316442301 Frigidaire Oven 8 Coil Element 2600W
3316048413 Frigidaire Oven Range Chrome 8" Drip Bow
3A316048414 Frigidaire Oven Range Chrome 6" Drip Bowl
4WCI 445T006P01
55303935058 Frigidaire Oven Burner Receptacle Kit
6ABRKT MAIN TOP HNG RH
6BRKT MAIN TOP HNG LH
7ROD-MAIN TOP SUPT.
8WCI 3051208
9PLATE-INST MOUNTING
10WCI 3051145
11SWITCH S/U (4)
12THERMO OVN-LOWER
13WCI 3051317
14AKNOB-THERMOS.
14BKNOB-SEL. SW.
14WCI 3051173
15INDICATOR LIGHT (4)
15AINDICATOR-LITE OVN
16LENS-IND LIGHT (2)
17ELEMENT-OVEN BAKE
185303051140 Frigidaire Broil Element
19316203400 Frigidaire Oven Support
19ARETAINER-LENS
20SWITCH-LIGHT (2)
21CLOCK
22WCI 3051114
23WCI 358T201P01
