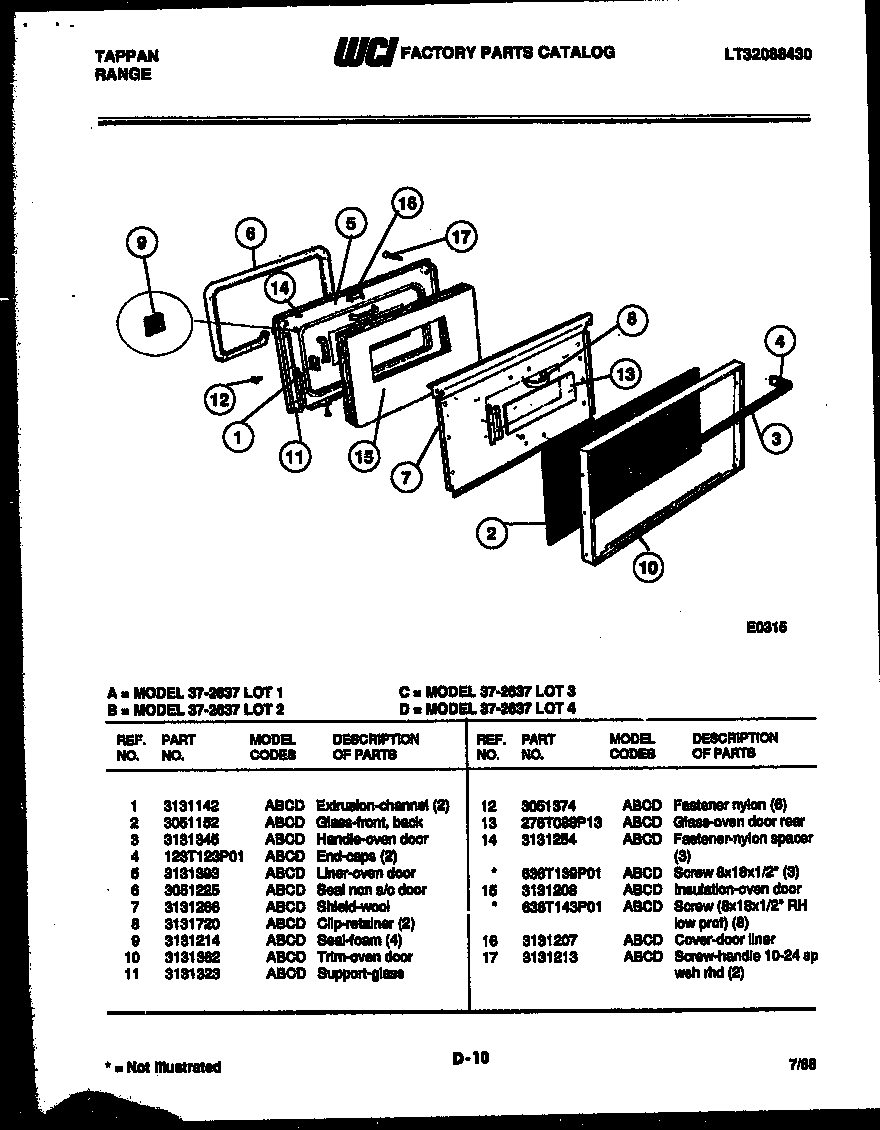

37-2637-00-04 05 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	GLASS-OVEN DOOR, BLACK, OUTER
3	HANDLE
4	316137003 Frigidaire Range / Cooktop End Cap
5	WCI 3131393
6	5303202011 Frigidaire Door Seal
7	WCI 3131266
8	CLIP-RETAINING
9	SEAL, FOAM (4)
10	WCI 3131362
11	SUPPORT, GLASS
12	FASTNR-SPACER (6)
13	OVEN GLASS-REAR
14	CLIP
14A	SCREW-DR ASSY 8-18 X 1/2“ PH WR HD SPC (3)
15A	5303300265 Frigidaire Oven Screw
15	INSUL. OVEN DR
16	COVER DOOR LINER (NON-ILLUSTRATED)
17	SCREW HANDL (2)
