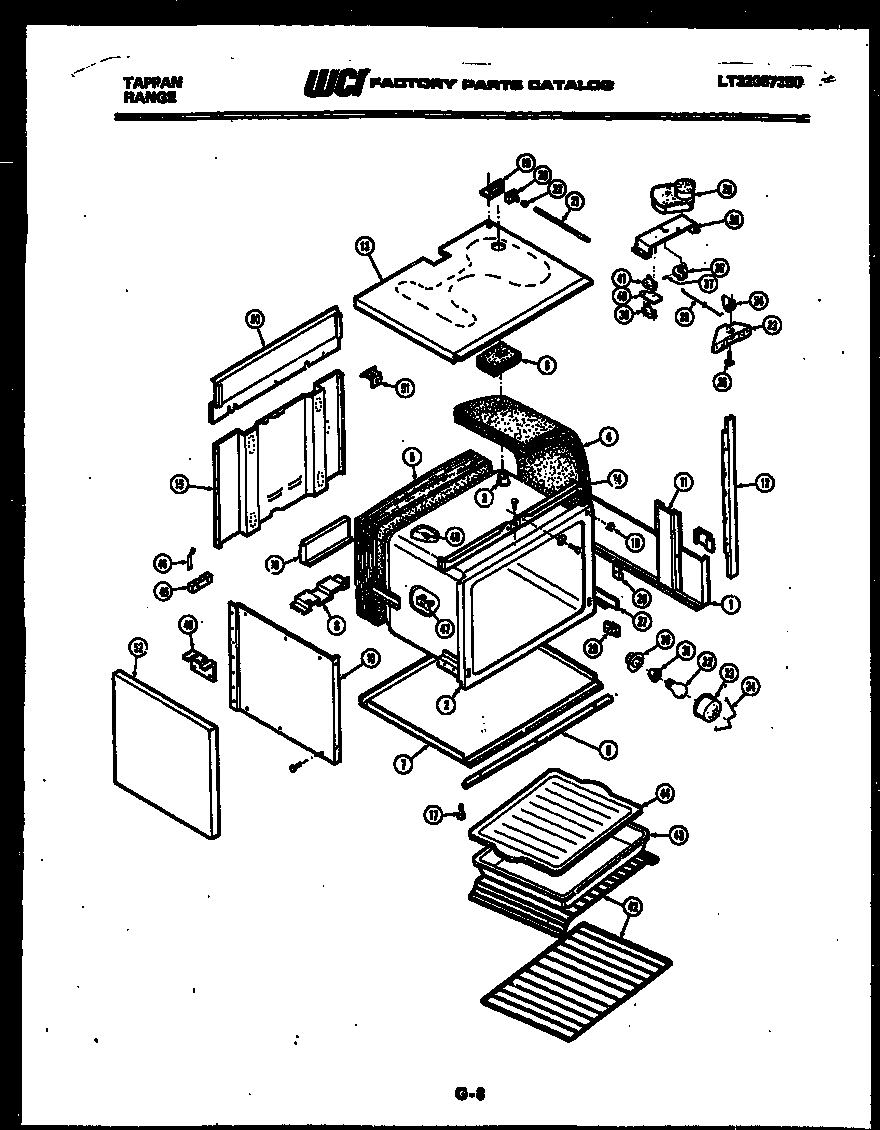

37-2957-00-01 07 – BODY PARTS

Products

Position	Product
1	WCI 3051781
1	WCI 3051780
2	BODY
3	VENT TUBE
4	WCI 3051628
5	INSULATION-OVEN BACK
6	INSUL.-VENT TUBE
7	WCI 3051774
8	PLATE-MOUNTING
9	WCI 3051775
10	SHIELD-INSUL. (2)
11	SUPPORT-FRONT (2)
12	WCI 3051777
13	SHIELD-INSUL. TOP
14	WCI 3051783
15	WCI 3051530
16	WCI 3051634
17	SCREW-LEVELING (4)
18	WCI 3051784
19	BRACKET-DOOR SW
20	WCI 3051644
21	ROD-SWITCH
22	CAP-END SWITCH
23	HOUSING-DOOR LATCH
24	LATCH-DOOR
25	AXLE
26	WCI 3051650
27	GLIDE-DRAWER-RH
27	RAIL, DRAWER LH
28	SPACER, DRAWER RAIL (2)
29	GUIDE-DRAWER FRNT (2)
30	WCI 3051511
31	316116400 Frigidaire Oven Light Socket
32	316538904 Frigidaire Oven Lamp Light
33	5304524341 Frigidaire Lens
34	WCI 3051515
35	WCI 3051878
36	WCI 3051879
37	WCI 3051880
38	WCI 3051649
39	WCI 3051740
40	5303935086 Frigidaire Oven Top Burner Switch Kit
41	WCI 3051741
42	RACK-OVEN
42	WCI 3051493
43	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
44	WCI 3051562
45	5304409888 Frigidaire Oven Terminal Block with Hardware
46	WCI 3051805
47	BRACKET-THERMO BULB (2)
48	PLUG BUTTON – THERMO BULB HOLE
49	WCI 3051801
50	WCI 3051555
51	BRACKT-HNG SUPT
52	WCI 3051498
52	WCI 3051499
