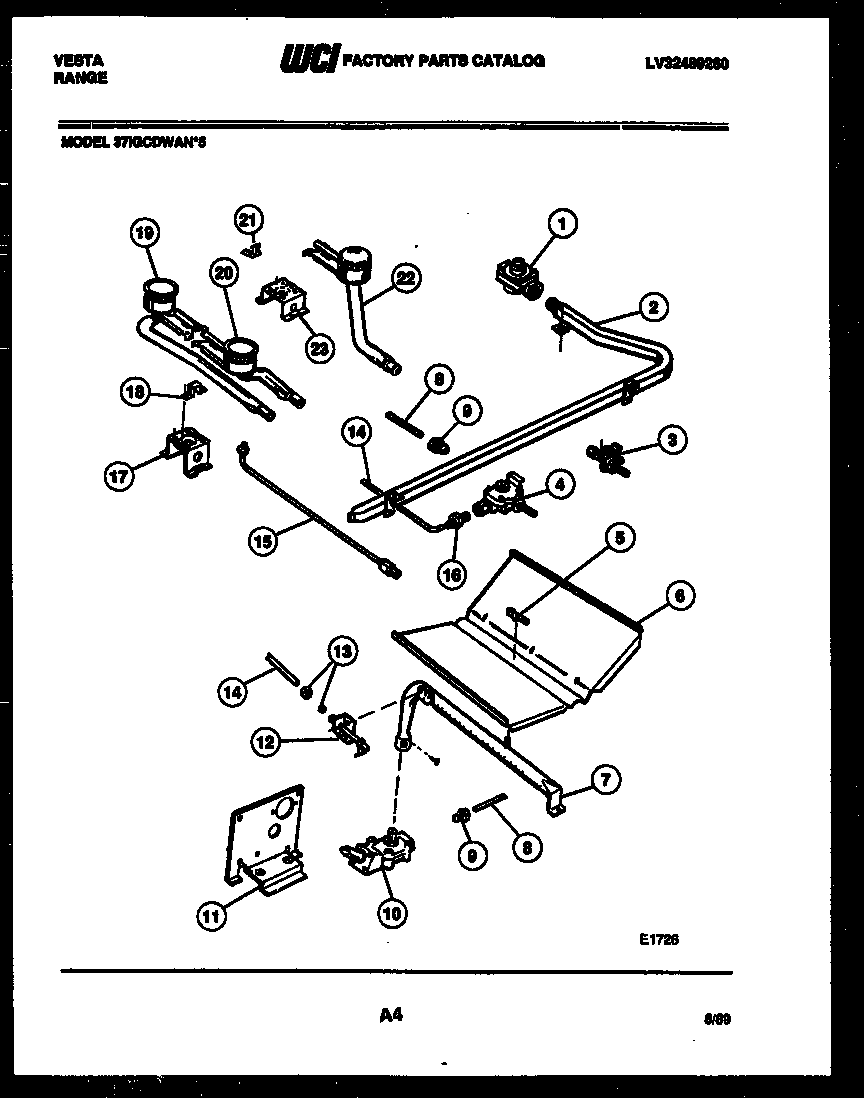

37IGCDWAN5 04 – BURNER, MANIFOLD AND GAS CONTROL

37IGCDWAN5 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

37IGCDWAN5 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
15308007974 Frigidaire Pressure Regulator
2WCI P245185
3VALVE-TOP BURNER (2)
4WCI 08013927
5NUT – WING
6BAFFLE-OVEN BURNER
7WCI 08013855
8TUBE-OVEN FEED
9WCI 3131064
10WCI 08013942
11SUPPORT-OVEN SAFETY VALVE
12PILOT – OVEN
13NUT & SLEEVE
14TUBE OVEN PILOT
15WCI P288035
15APILOT-TOP BURNER (RIGHT)
16WCI 3131074
17SUPPORT – TOP BURNER
18STRAP – PILOT SHIELD
19BURNER – TOP REAR
20BURNER – TOP FRONT
21CLIP-CAPILLARY (NON-ILLUSTRATED)
22WCI 3131882
23SUPPORT – GRID BURNER
