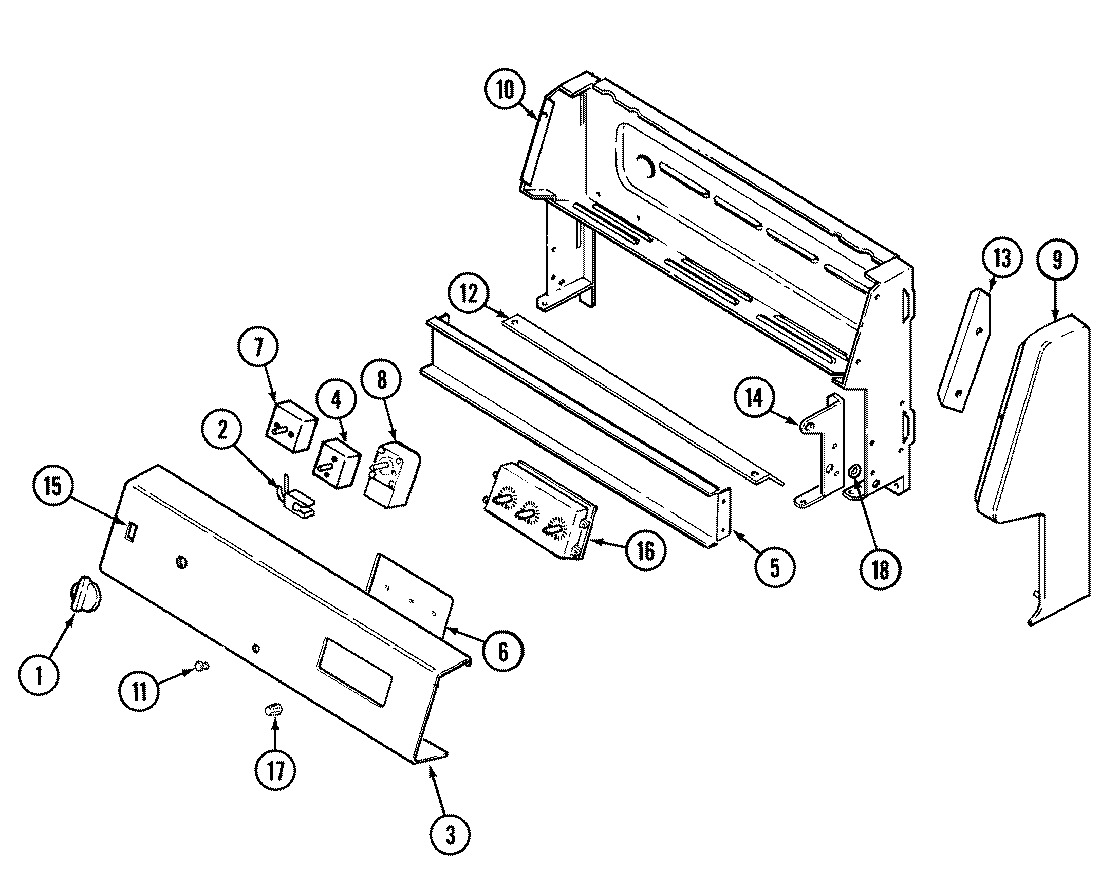

3822KVW-D 02 – CONTROL PANEL

Products

Position	Product
1	MAY 7731P082-60
2	W10852510 Whirlpool Indicator Light
3	MAY 74002564
3	WPY706189 Whirlpool Stove Screw
4	MAY 7403P342-60
5	MAY 3802F088-51
6	MAY 7902P109-60
7	SCREW
7	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP7403P239-60 Whirlpool Oven Switch
8	MAY 7404P100-60
8	MAY 7101P280-60
9	MAY 7726P051-60
9	MAY 7726P052-60
10	SCREW
10	MAY 74002162
11	W11690131 Whirlpool Light Lens
12	MAY 3604F201-80
13	MAY 3807F450-45
13	MAY 3807F449-45
14	MAY 8114P348-60
14	MAY 3418D098-60
14	MAY 3418D097-60
15	MAY 7718P009-60
16	SCREW (8BX3/8-NI)
16	MAY 74001560
17	MAY 7711P466-60
18	WP3195558 Whirlpool Nut
19	MAY 74001013
19	MAY 74002565
20	MAY 8113P038-60
20	MAY 74002251
21	MAY 16000329
