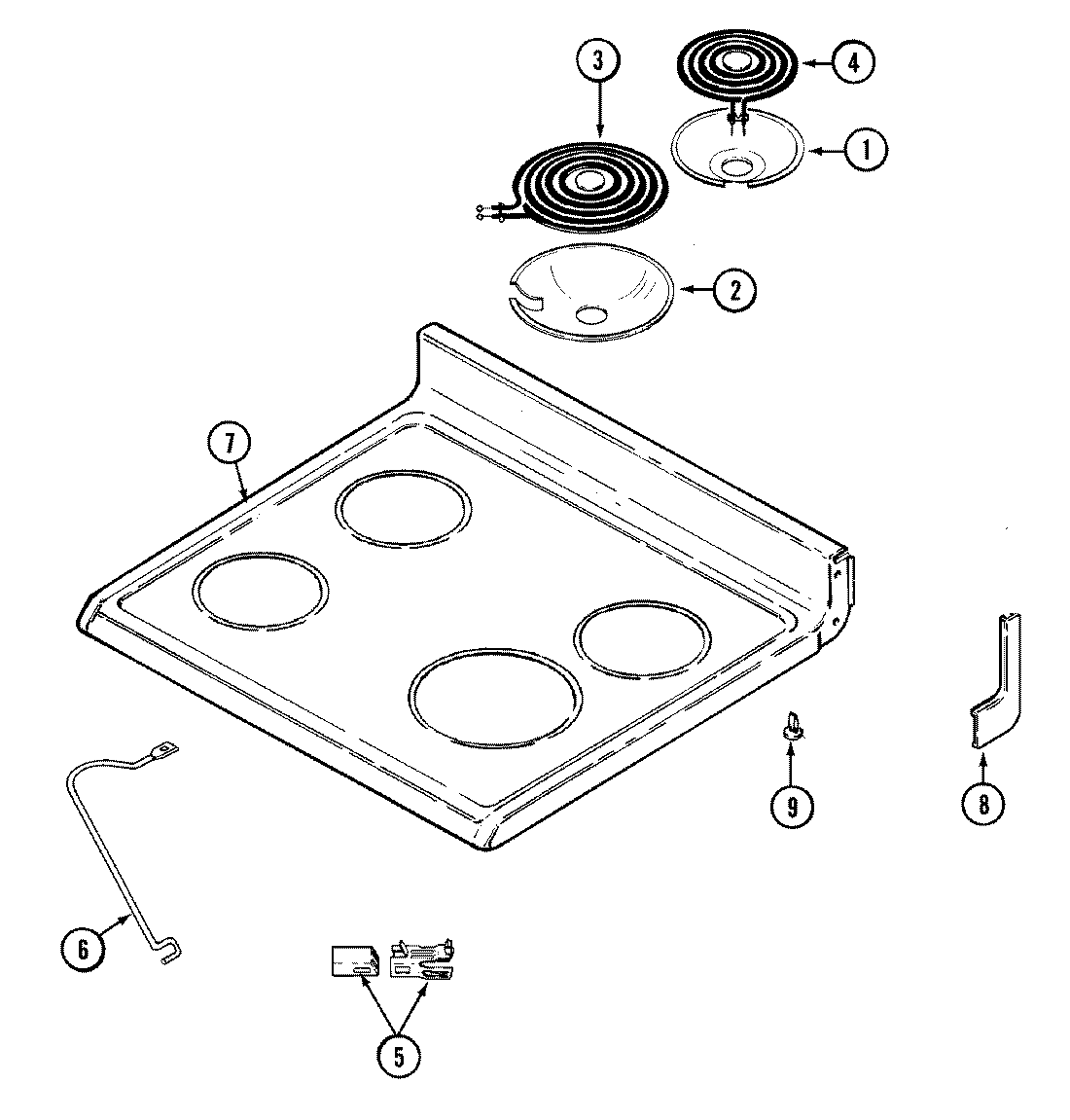

3822KVW-D 05 – TOP ASSEMBLY

Written by

Products

Position	Product
1	WPW10196406 Whirlpool 6" Chrome Drip Bowl
1	WB32X107 GE Range Stove Cooktop 6" Drip Bowl Chrome Large Hole
2	MAY 7725P047-60
3	MAY 7406P040-60
4	MAY 7406P038-60
5	MAY 1430306K
5	SCREW
6	MAY 74001170
7	MAY 2002W104-81
7	SCREW
8	MAY 7746P031-60
8	WP3195558 Whirlpool Nut
8	MAY 7746P030-60
9	MAY 8016P015-60
